PANORAMIC

Beam & Wash Zoom Led Pixel Control

7x40W 4IN1 RGBW LED

Motorized linear zoom system 3°-45°

Outstanding color macro effect

0~100% smooth dimming

Variable strobe effects

PowerconTrue

TECHNICAL DATA

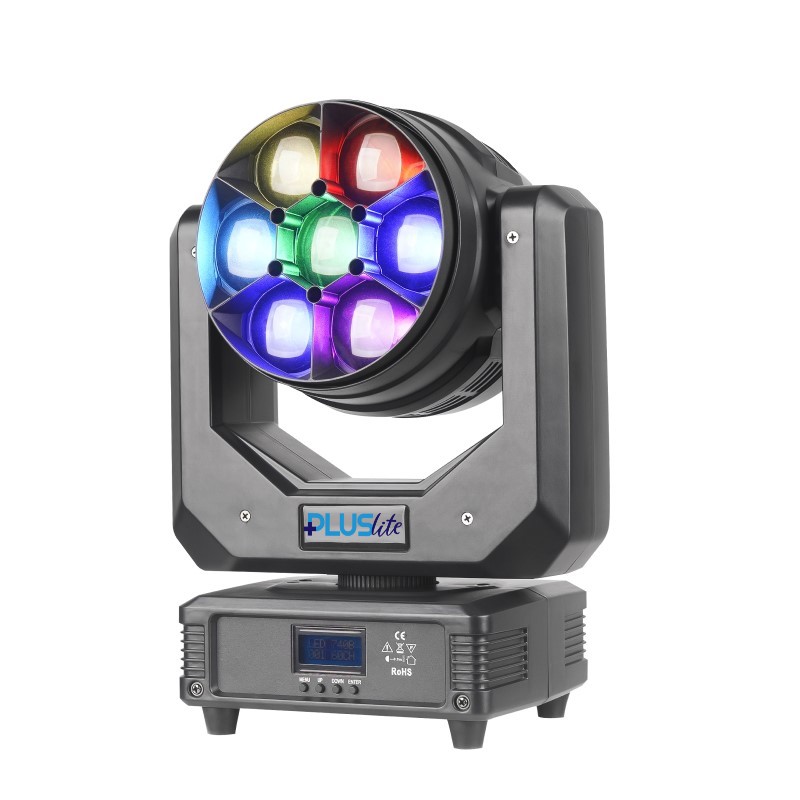

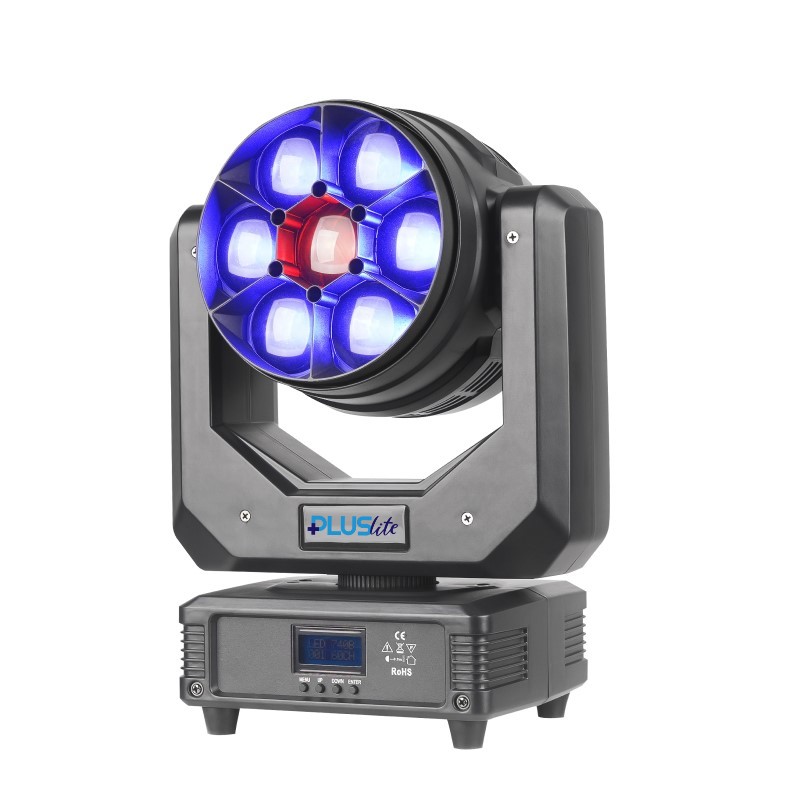

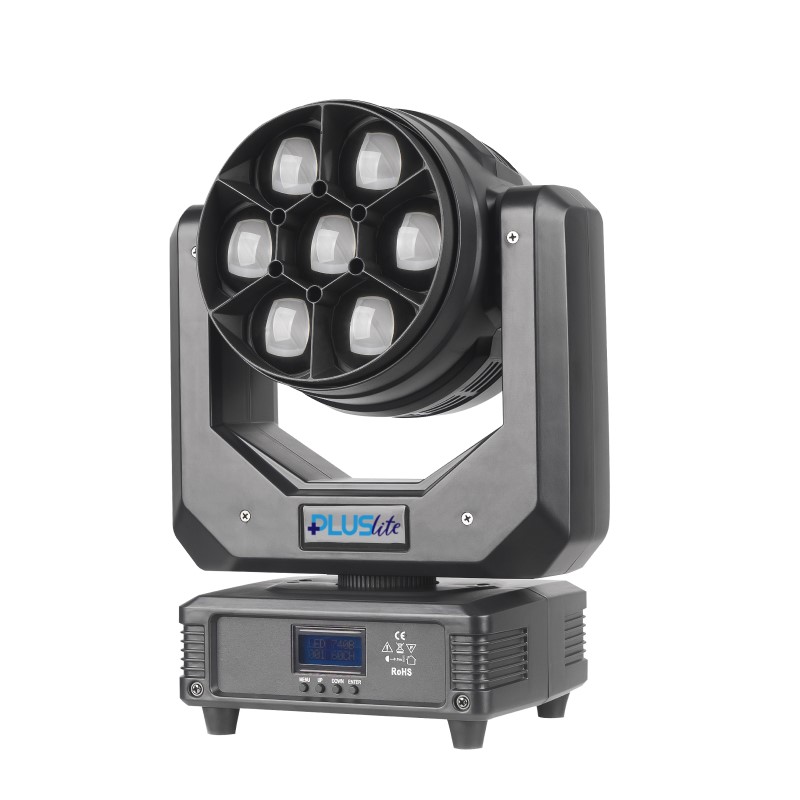

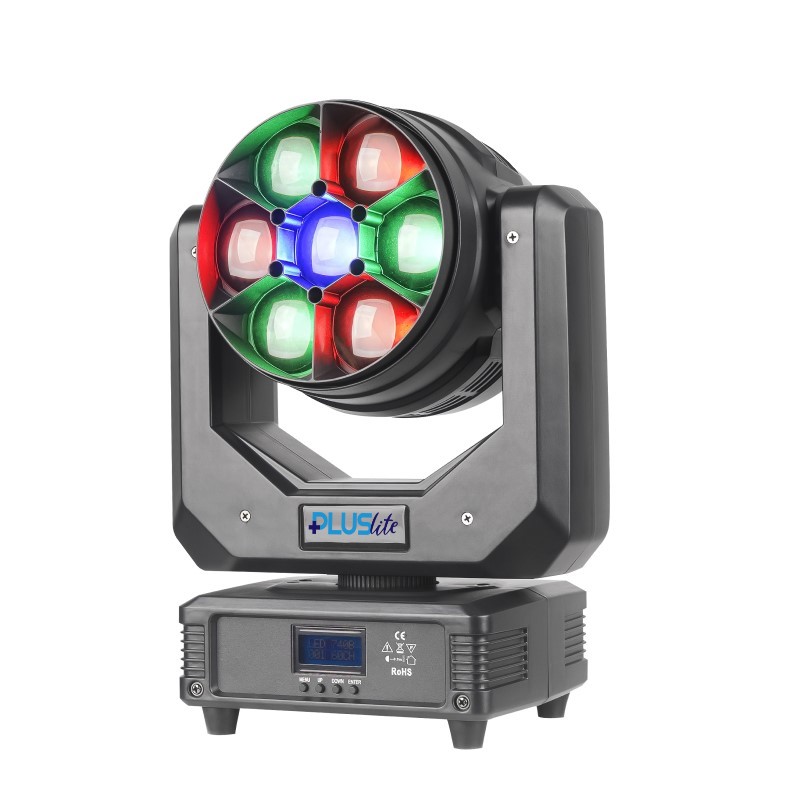

Compact moving head with Wash&Beam Zoom function and Pixel Control.

Controllable with DMX 512 digital signal or automatically with or without music. DMX-controlled Beam Zoom with a wide quality lens of 3° to 45° and the Moving Wash has a total of 7 x 40 Watt RGBW LEDs which enable a powerful light output as well as infinitely variable color mixing.

An adjustable Dimmer and strobe effects allow for creative and ever-changing light shows. LCD display to check the parameters.

Fast silent and precise with the Pixel Led Control allowing the creation of countless and extraordinary light and multimedia shows.

Light Sources: 7x40W 4IN1 RGBW LED

Beam Angle: 3°~ 45°

Motorized linear zoom system

Outstanding color macro effect

Dimmer: 0~100% smooth dimming

Variable strobe effects

Fast, quiet operation and flicker free

Pixel Control

DMX Channel: 21/24/32/60 CH

Control Modes: DMX512/mater-Slave/Auto Run/Music/RDM

Pan/Tilt

Pan/Tilt: 540°/ 270°

Pan/Tilt Resolution: 8/16 bit

Power Consumption: 250W

Power Voltage: AC 100-240V, 50/60Hz

DATA Display: LCD Display

Data In/Out socket: 5-pin XLR sockets

Power Socket: Powercontrue in/out

Protection Rating: IP20

Dimension: 258*178*334 mm

Net Weight: 5.6 Kgs

Flight case packing(4 in 1): 620x540x560mm

Carton packing(1 in 1):320x240x430mm
