PANORAMIC

Architectural IP65 LED Outdoor Battery WIRELESS Wall Washer Flood Lights

24 x high-power 15W RGBWAUV 6in1 LEDs

Battery: 24AH 24V

 Wirelss by LUMENRADIO

Strobo, Static, Fade, Jump, Pulse Colors

DMX control of dimmer

IP65 Seetronics PowerCon connector

TECHNICAL DATA

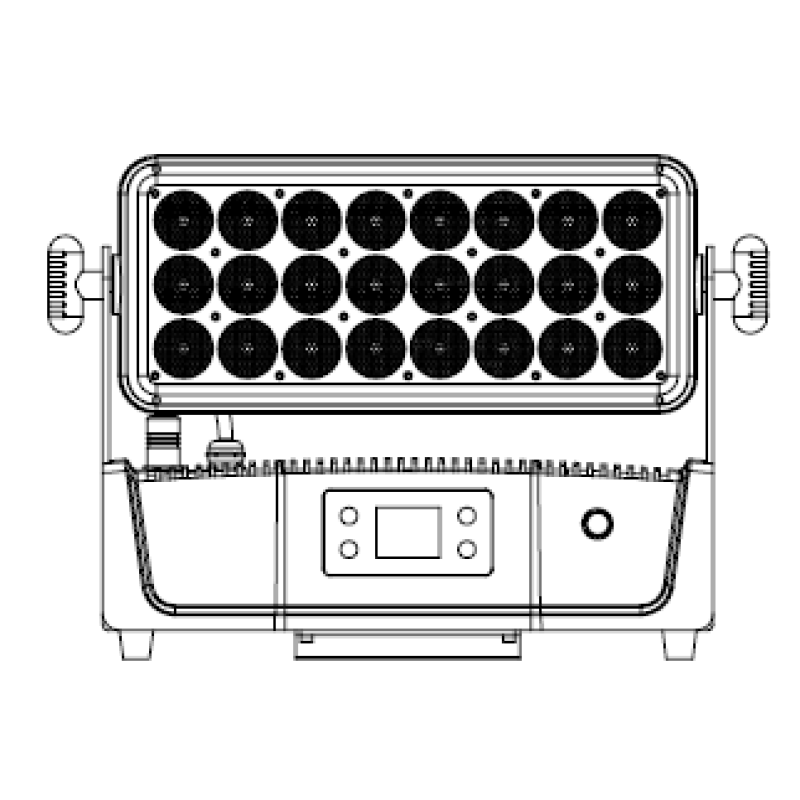

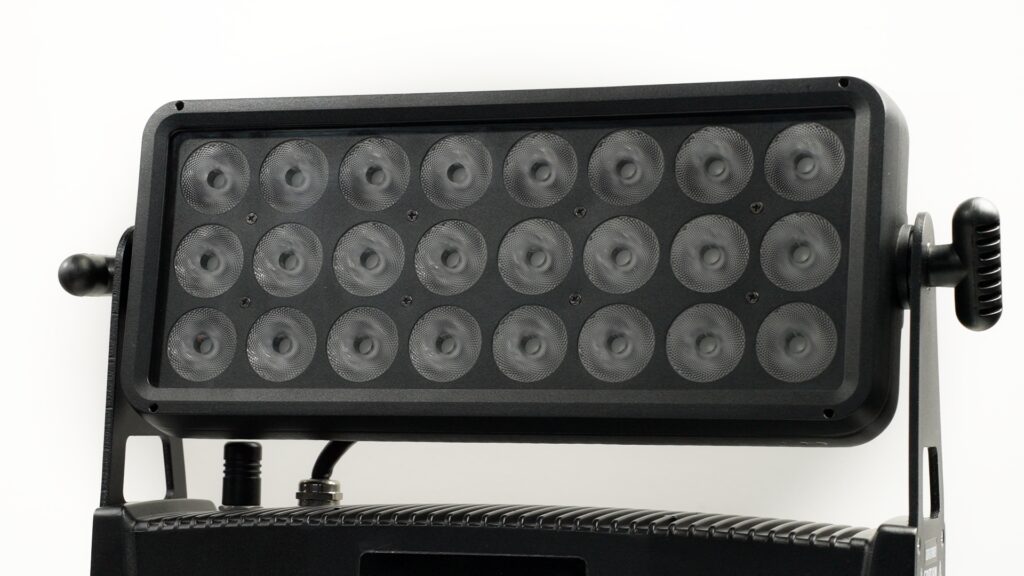

Arkibat is a RGBWAUV Led Outdoor Wireless Battery Wall Washer Flood Lights. Die-casting Aluminium housing, 25° degree lens, with battery 24AH, 24V. Charging time: 6.5 hours from 0-100%.

Arkibat is one of the most innovative LED pars, as it offers you a DMX control mode and the ability to create effects with a pleasant view, with its strobo, static, fade, jump and pulse multi color functions.

It’s an idea product for art gallery, museum, shoping mall and entertainment event.

Light source: 24 x high-power 15W RGBWAUV 6in1 LEDs

Beam angle: 25°

Built-in Effect: Strobo color, static color, color fade, color jump, color pulse
Electronic Dimming: 0-100% 16bit linear dimmer

DMX Channels: 6/11CH

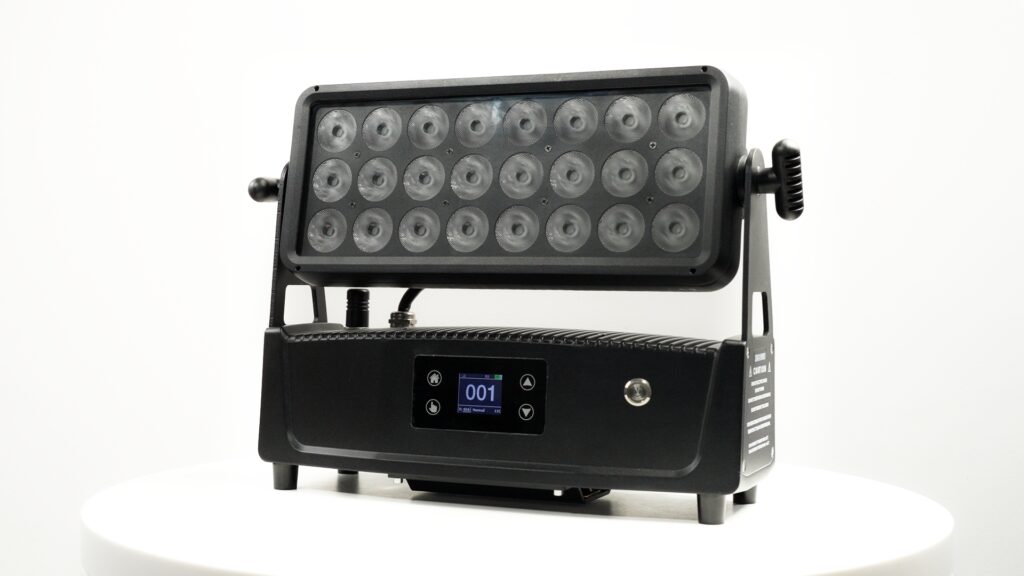

Control Mode: 1.44 inch TFT display, four touch button control panel 1-20 times/second strobe
Wireless DMX,DMX, Master/Slave,wireless Master/Slave 6/11 DMX channels

Power Consumption: 250W

Power Voltage: 90V ~ 240V/50~60Hz

Battery: 21700 battery cell
Capacity: 24AH, 24V
Charging time: 6.5 hours from 0-100%
Using time for full colors: about 4.5-5 hours
Charging management system, independent circuit charging and discharging

Function:
Emergency function
High / Normal / Eco power setting
DMX hold on/off
Can edit colors on the lights directly
Built-in macro color

IP65 Seetronic 5-pin DMX in/out connectors

IP65 Seetronic power in/out connectors

Housing case: Die-cast Aluminum body

Protection class IP: IP65

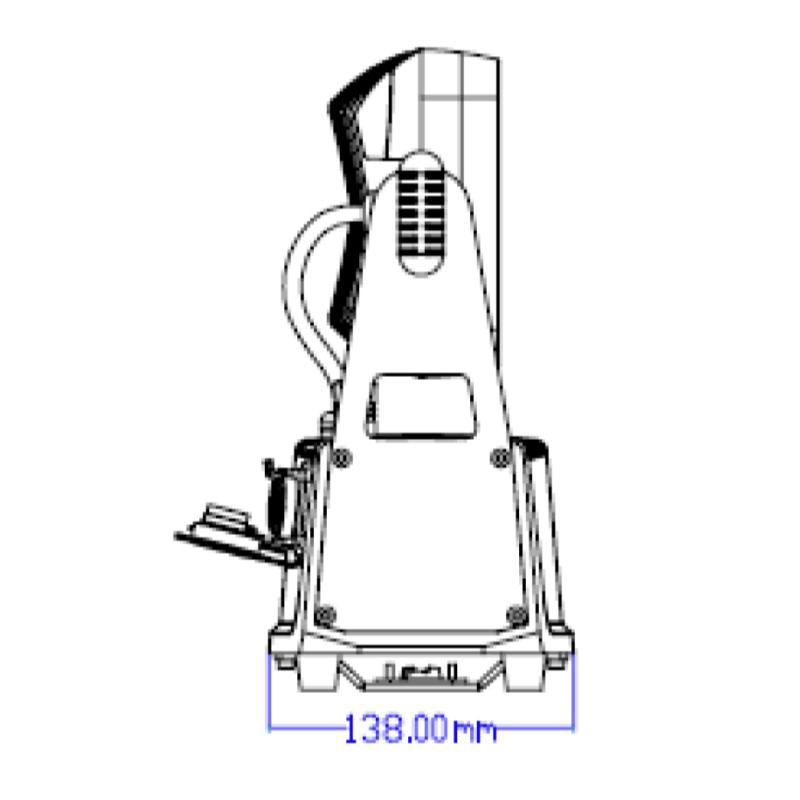

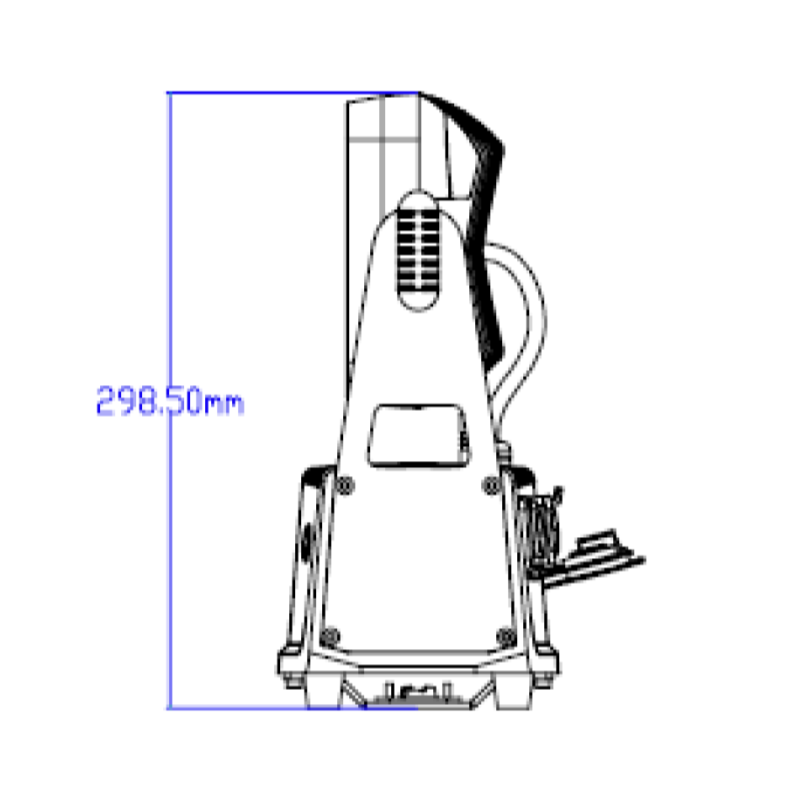

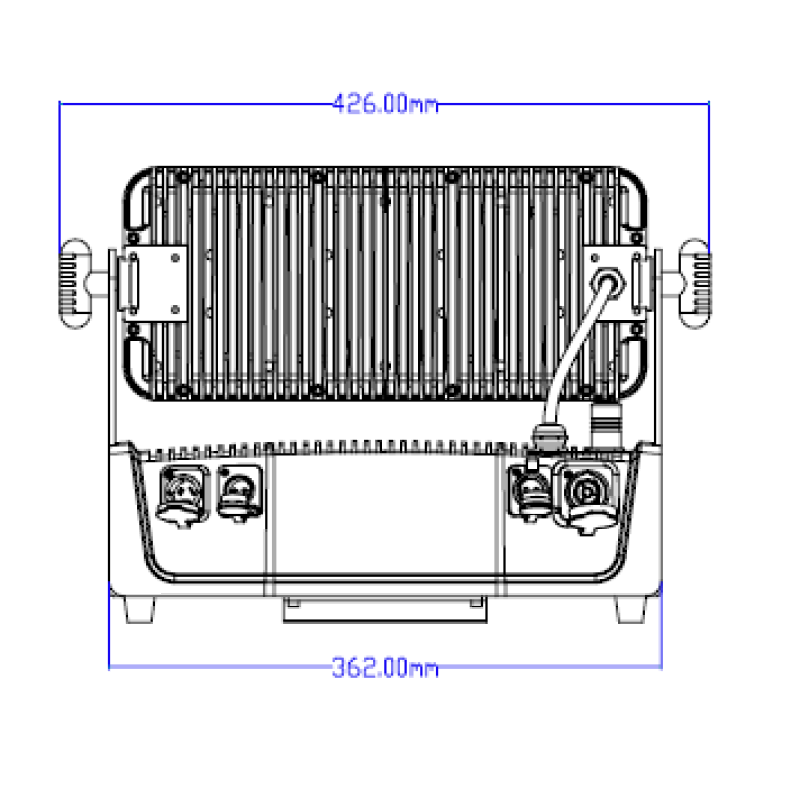

Dimension: 426 x 298.5 x 138mm

Weight: 9,5 kg

Flightcase recharge size:  (4in1)

Download

Datasheet

Drawing

Manual

Products

EYE

Beam & Wash ZoomLed

miniART

Moving Head Wash Beam Zoom

miniPZ

Mini Projector Shaper Zoom

VERO1000

Beam Spot Wash Profile LED 4in1

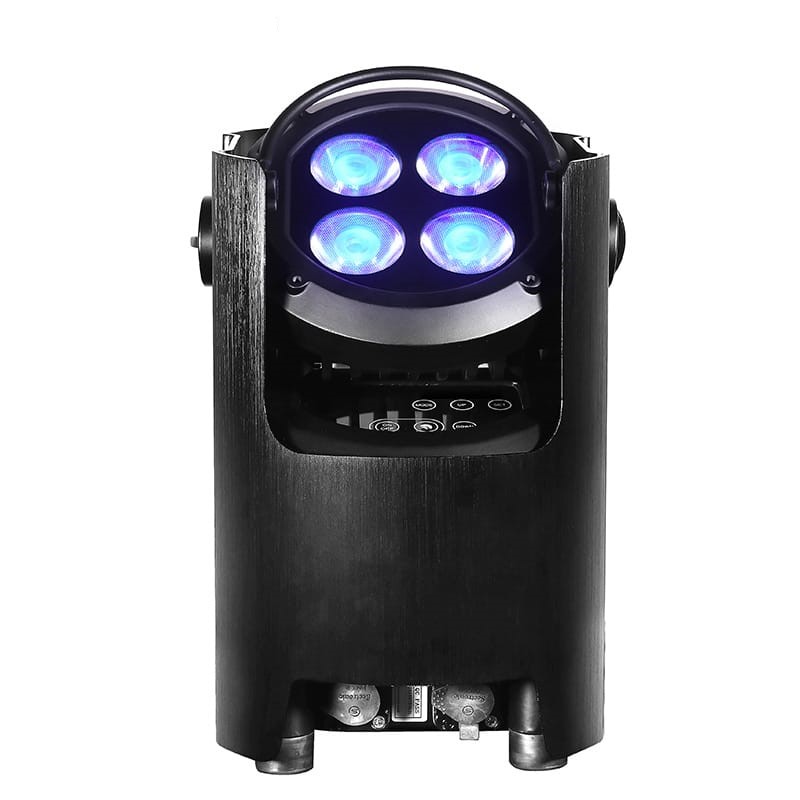

Plusbat
