Mini Projector Shaper Zoom Led Tunable

LED 60W WW + 60W CW constant output

Color Rendering Index(CRI): Ra≥92

Manual zoom system from 15°-30°

Electronic shutter effect

Electronic dimming 0 – 100%

Strobe and pulse effects

Cooling: Heat sink, fan-free

Control options: DMX, RDM, stand-alone

IP65 Outdoor

TECHNICAL DATA

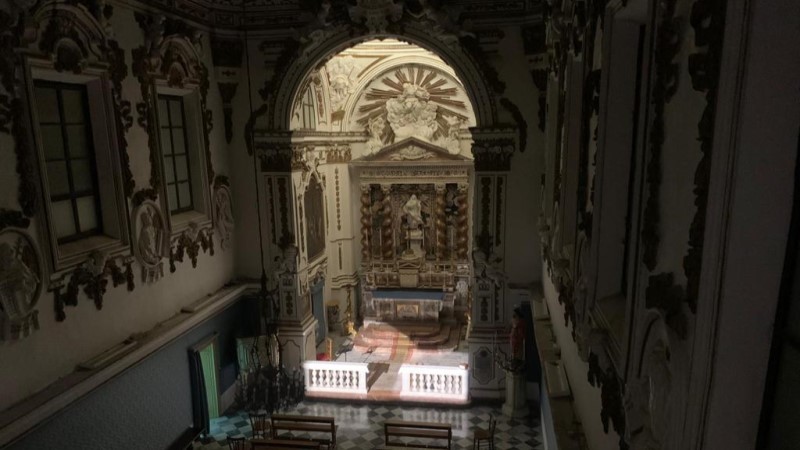

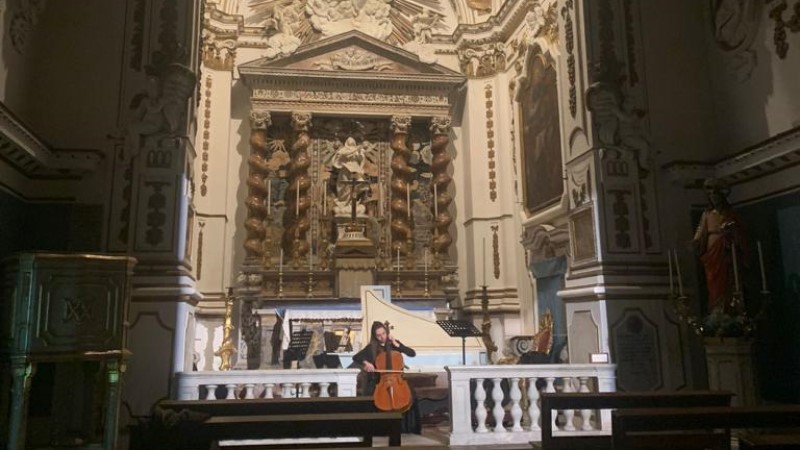

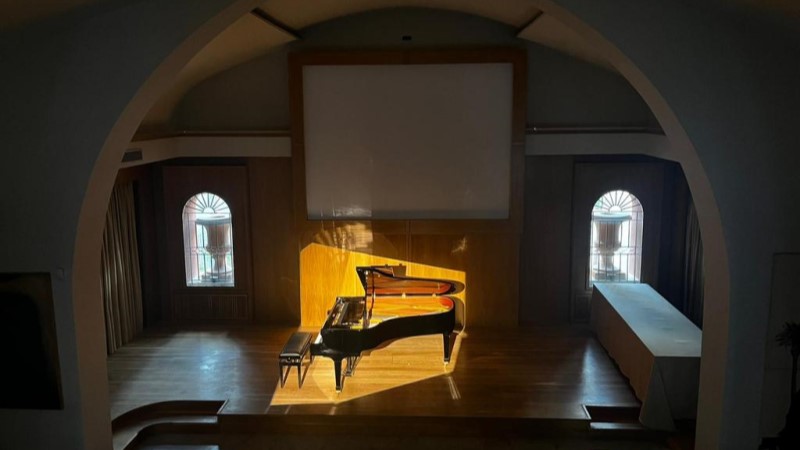

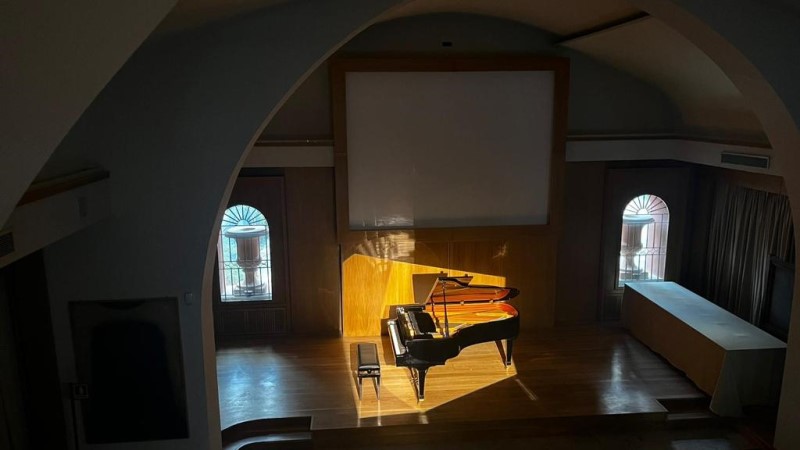

MiniPZ is a 60W tunable COB LED profile spot. Die-casting housing, fan-free design. With 15° – 30° and 25° – 50° zoom lens optional, color temperature adjustable from 2700K – 6000K. It’s an idea product for art gallery, museum, shopping mall.

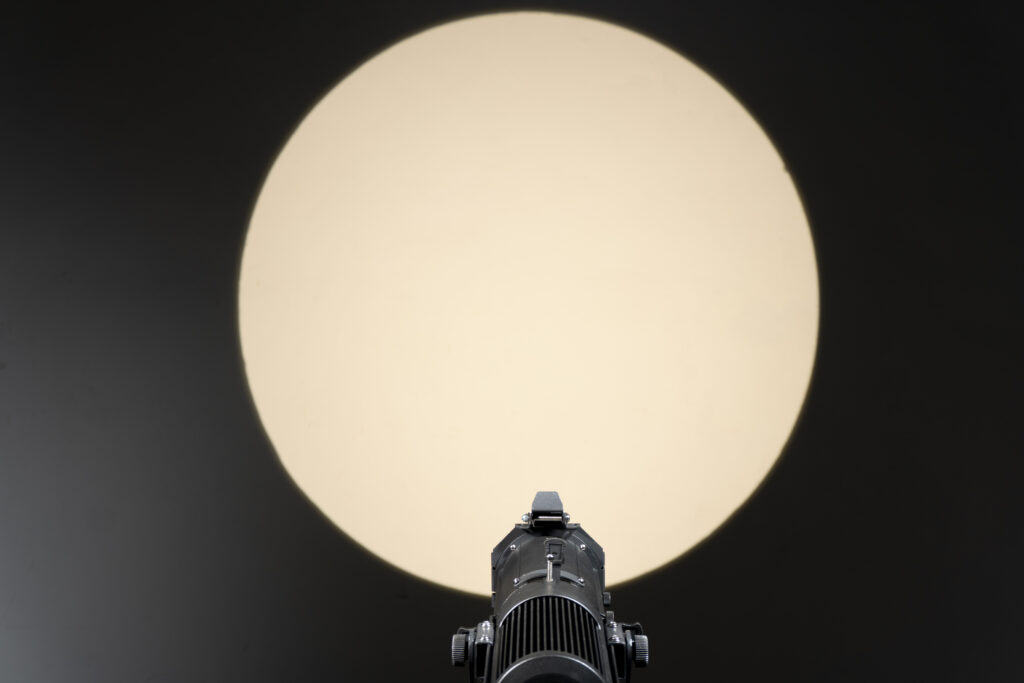

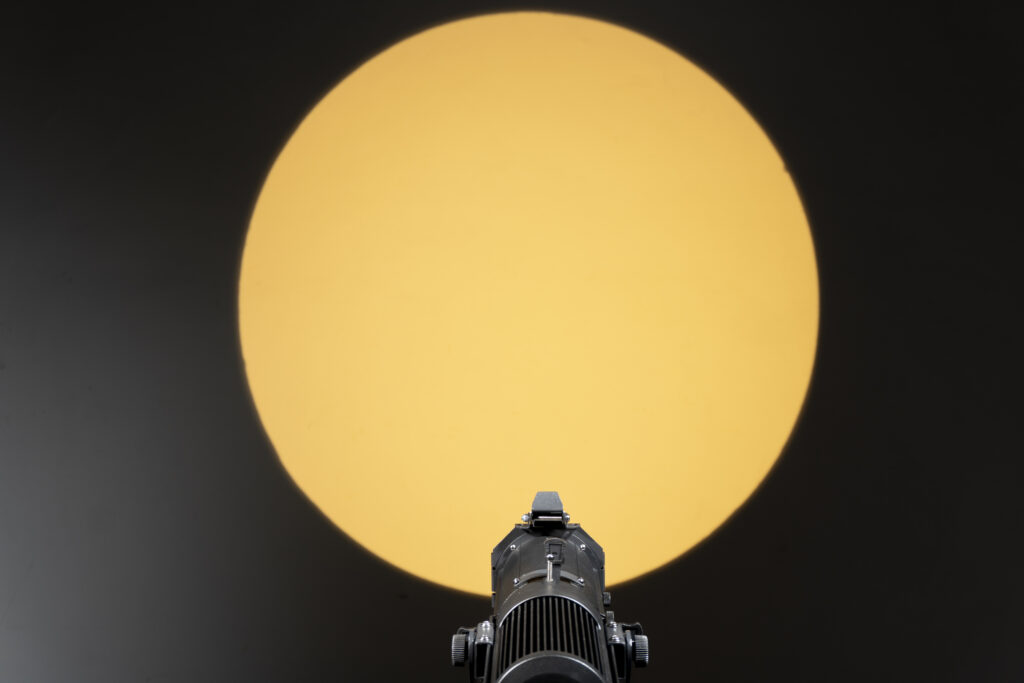

Color temperature: It comes with tunable color temperature from 2700K to 6000K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 60Watt warm white, 60Watt cold white and still 60Watt when mixing.

Robust design: The whole body is die-casting aluminum. Unique, clean and appearance. It’s durable for application.

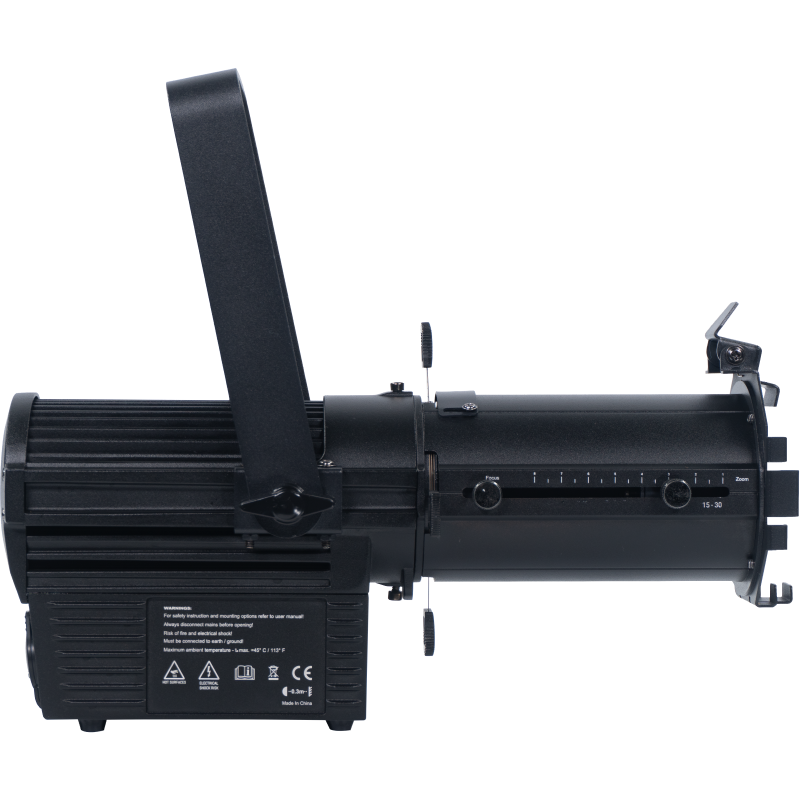

Zoom lens: MiniPZ comes with both 15 – 30 degree lens and 25 – 50 degree lens. These zoom lens covers almost all the regular fixed lens options like 19°, 26°, 36°, 50°. No matter for long or short distance, it’s all covered.

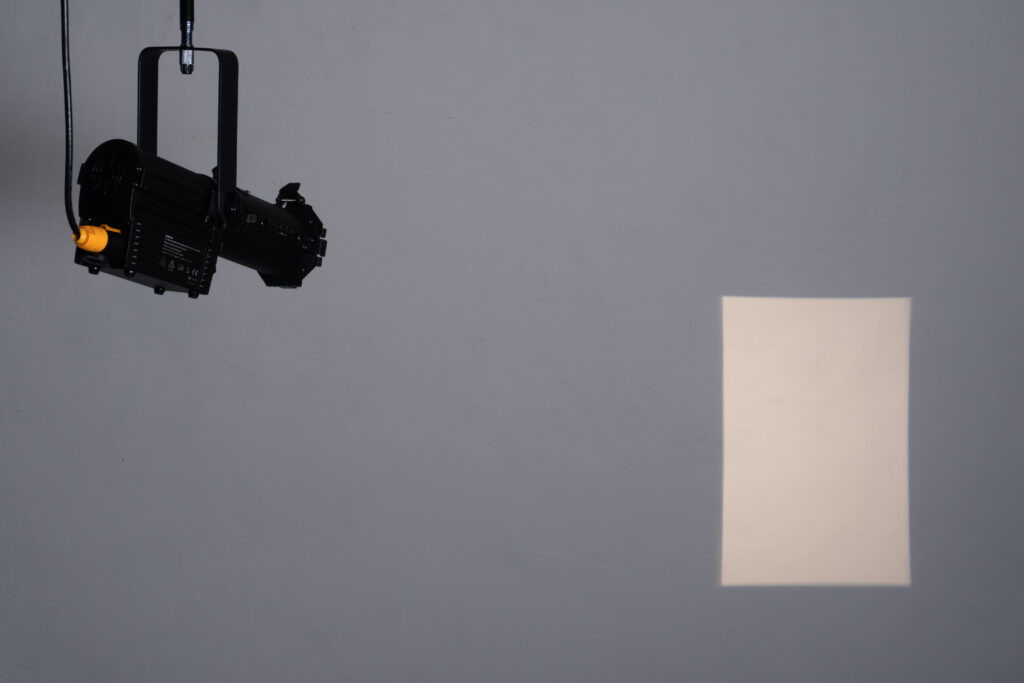

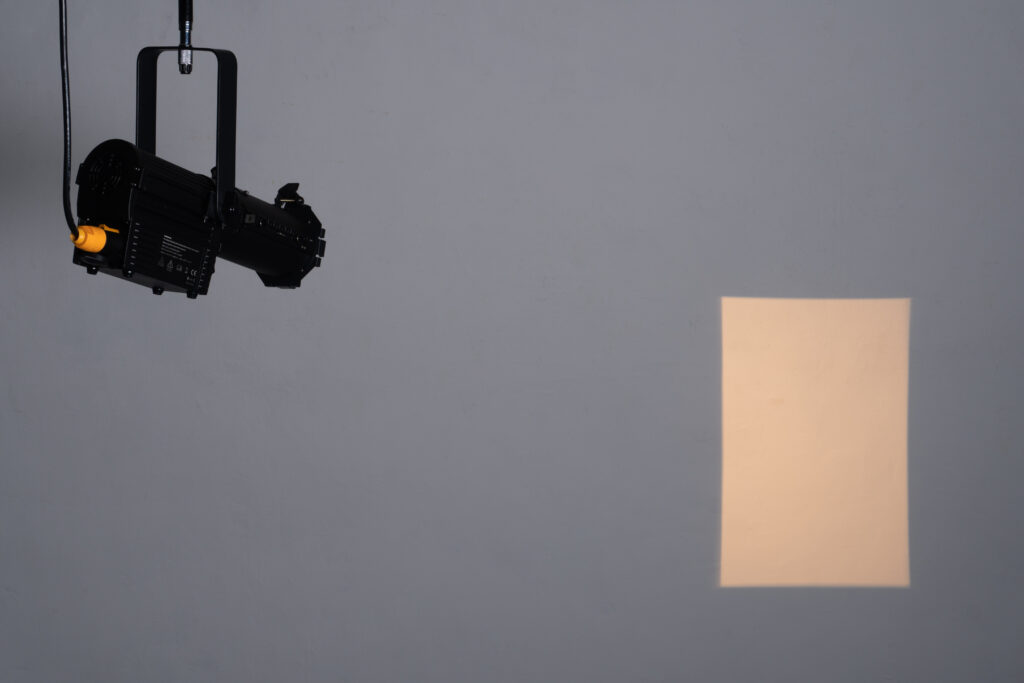

Shutters: With the four shutters on the lens tube, you can precisely control the shape of the light.

Color reproduction: High CRI and TLCI over 92. The high color rendition make sure accurate color reproduction no matter for your art galleries, jewelries, clothes, foods…

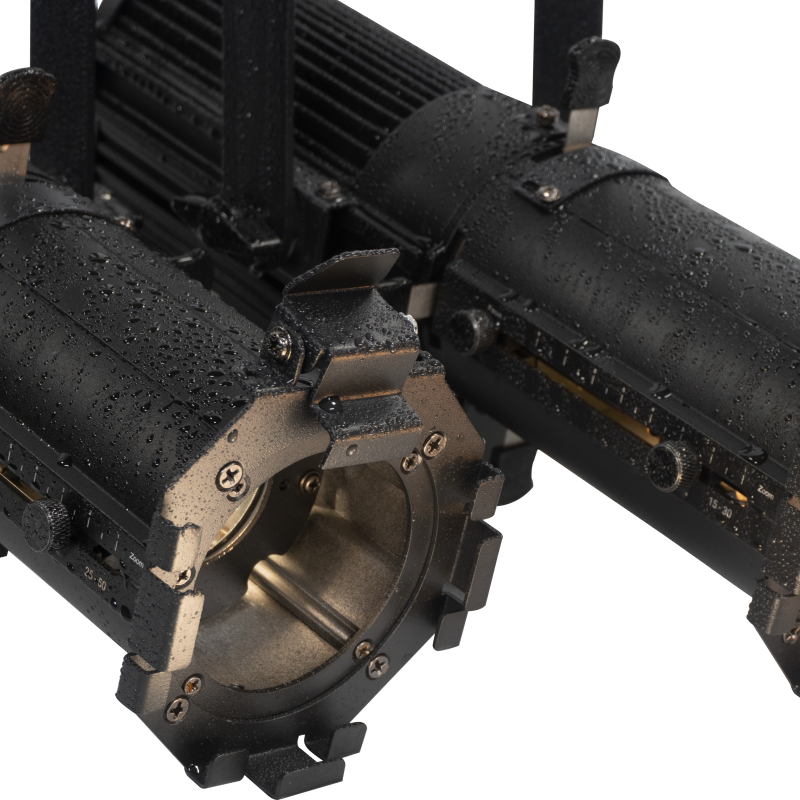

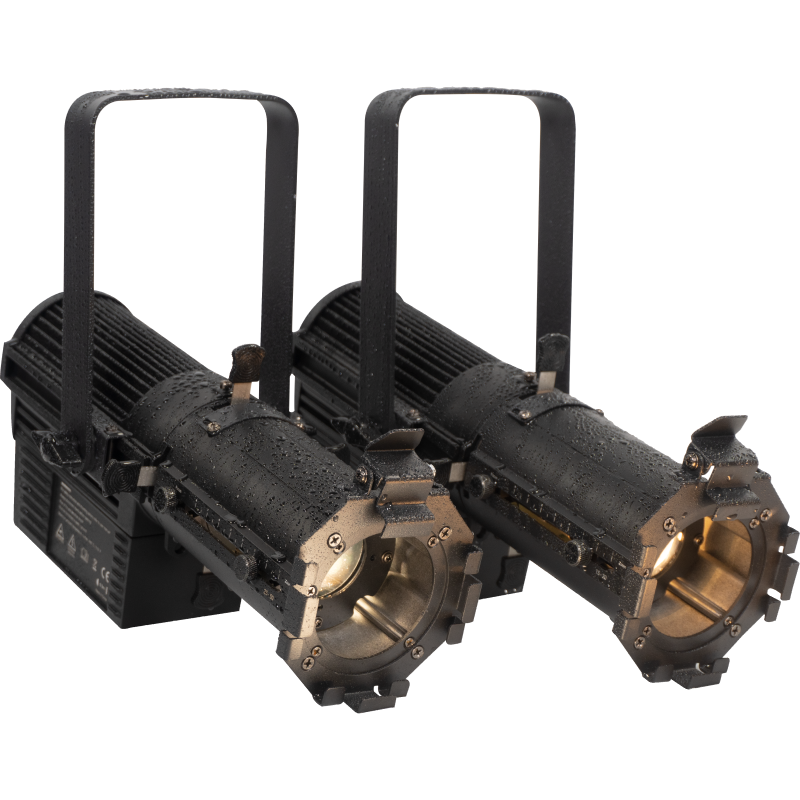

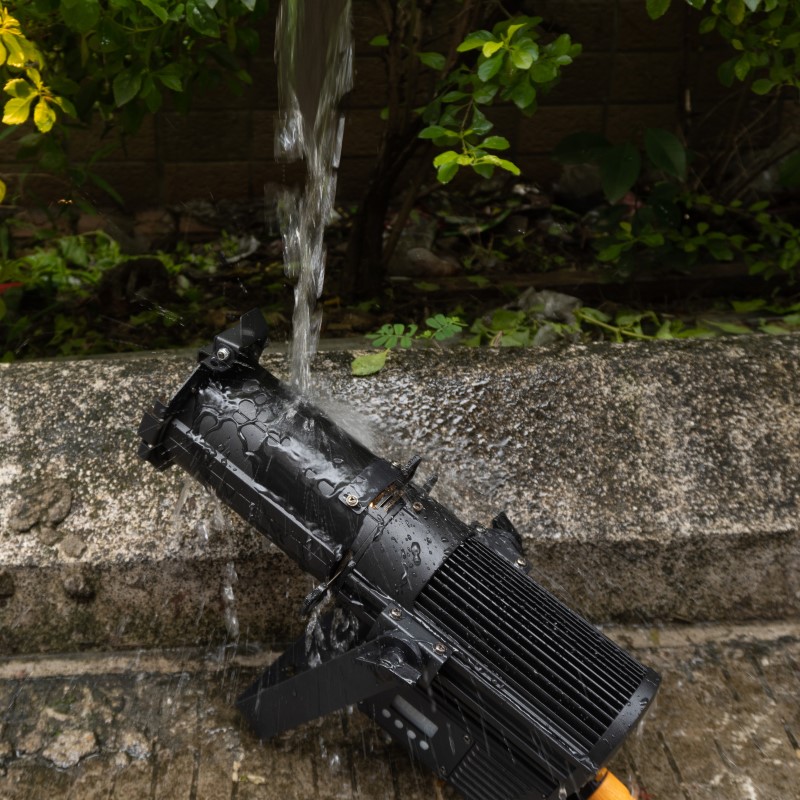

IP 65 rated: And one of the biggest feature for the fixture is the IP rated which means it is designed for both indoor and outdoor application.

  • LED 60W WW + 60W CW constant output
  • Color temperature 2700K – 6000K adjustable
  • Color Rendering Index(CRI): Ra≥92
  • HD optics, 15° – 30° and 25° – 50° zoom lens optional
  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3/5
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings
  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Photometric data:
• CRI (Color Rendering Index) : >92
• TM-30 Rf (IES TM-30-15 Fidelity Index): >92 (4,000K)
• TM-30 Rg (IES TM-30-15 Gamut Index): >100 (4,000K)
• TLCI (Television Lighting Consistency Index): >92 (4,000K)

Thermal:
• Cooling: Heat sink, fan-free
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): -10° C (14° F)

Gobos & color frame:
• Gobo size: Glass gobo, E-sized, OD 37.5mm, image area 25.4mm, maximum thickness 1.2mm (optional)
• Color frame

Installation:
• Mounting: Adjustable bracket
• Environment: IP65 outdoor use
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m (0.7 ft.)
• Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Approvals:
• EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
• EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

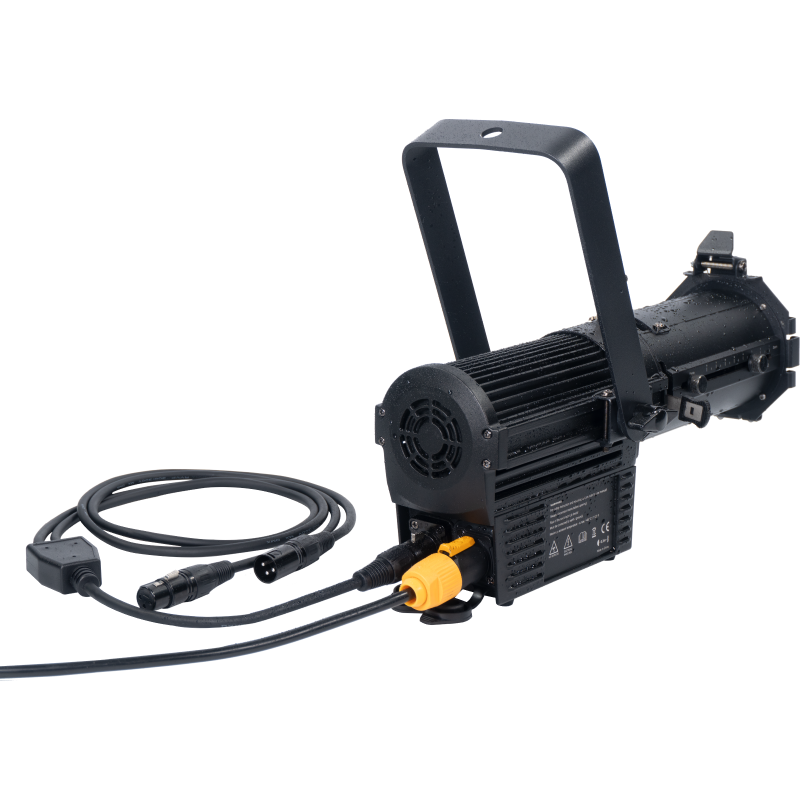

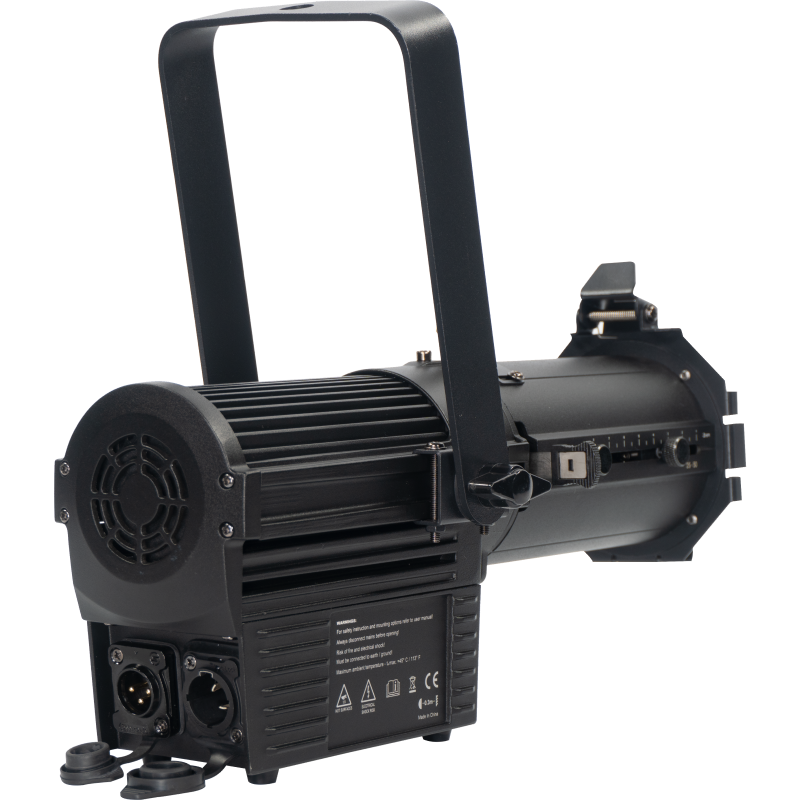

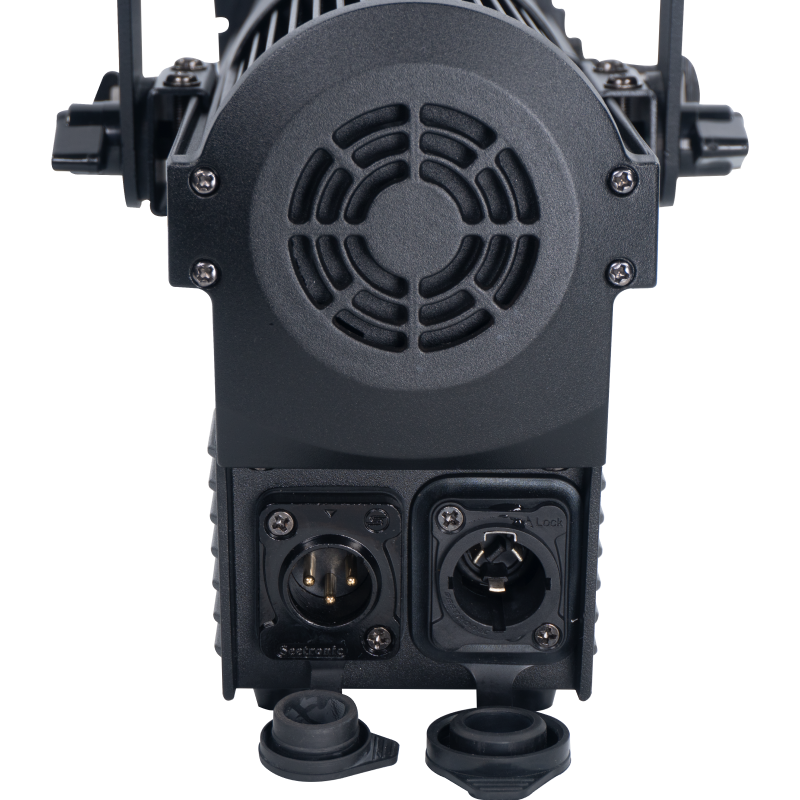

  • AC power in/thru: IP rated PowerCon in
  • DMX & RDM data in/thru: Y split 3-Pin XLR in & out
  • Housing material: Die-cast aluminum
  • Color: Black
  • IP Rate: IP65
  • Dimensions: 344(D)*164(W)*276(H)mm
  • Net Weight: 3kg
