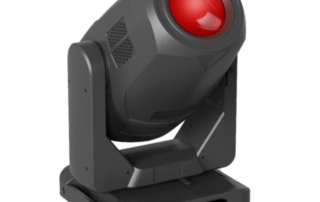

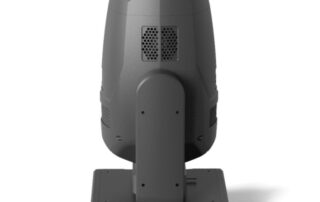

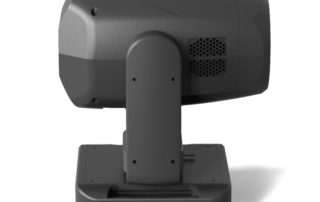

Vero700

PANORAMIC

Beam Spot Wash Profile LED 4in1

580W White LED Module

6.5°-42°linear adjustment

CMY+CTO, gobos, various wheels and effect

Motorized framing system

High temperature resistant engineering plastics

Wireless Sweden DMX, Artnet, DMX512, RDM, Battery Display

Compact and Lightweight

TECHNICAL DATA

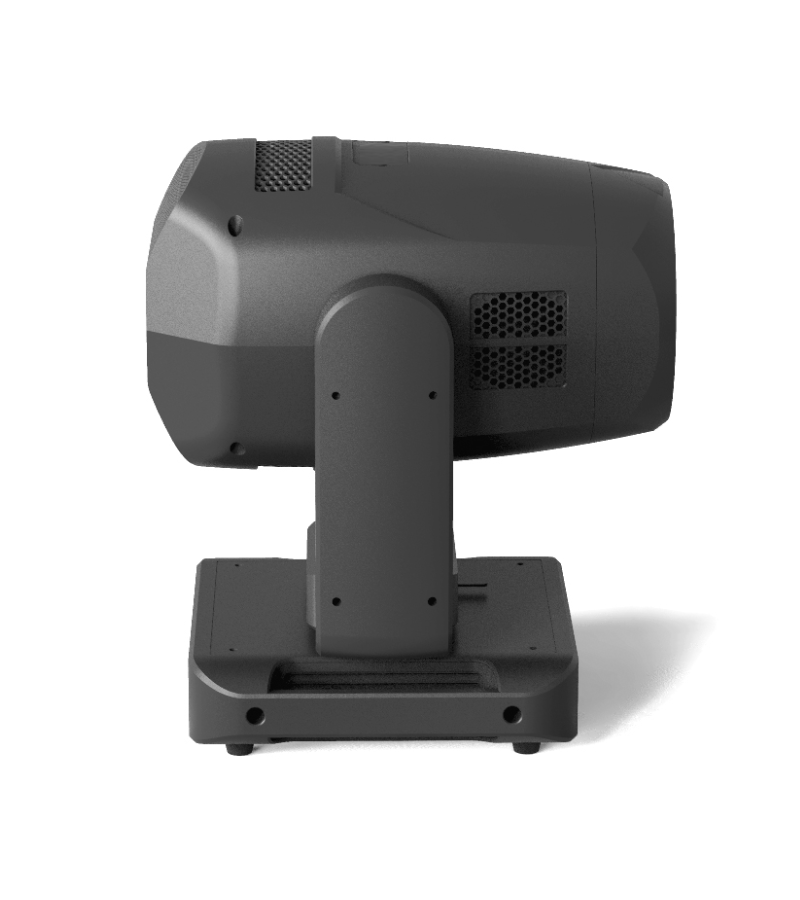

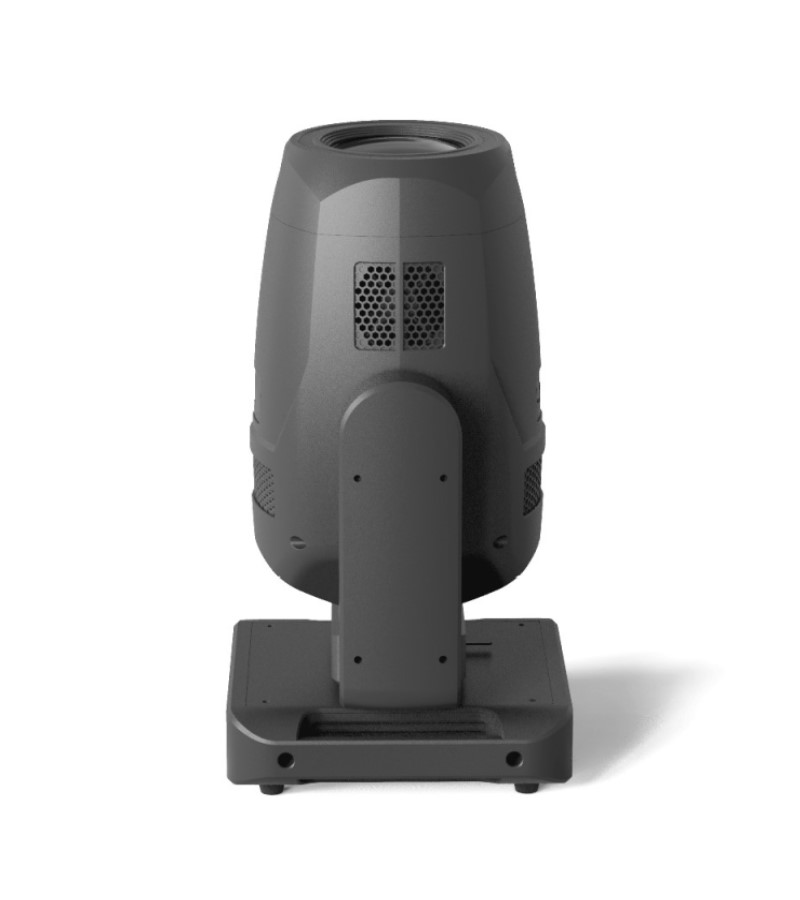

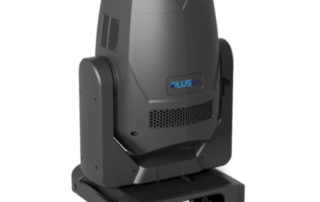

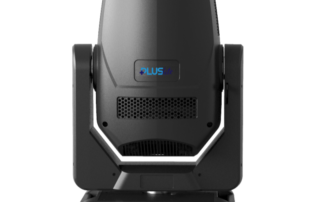

The VERO 700 BSWP is a Multi-function compact 580W LED profile beam spot wash 4in1. Steady and powerful yet stylish in design.
A complete machine that offers multiple control possibilities DMX512, Wireless Sweden DMX, RDM, ARTNET.
VERO 700 BSWP is made of new type of high temperature strength of engineer plastics and cast aluminum casing with nice outlook.

The fixture is designed and manufactured strictly following CE standards,complying with international standard DMX 512 protocol.
It`s available independently controlled and linkable with each other for cooperation.

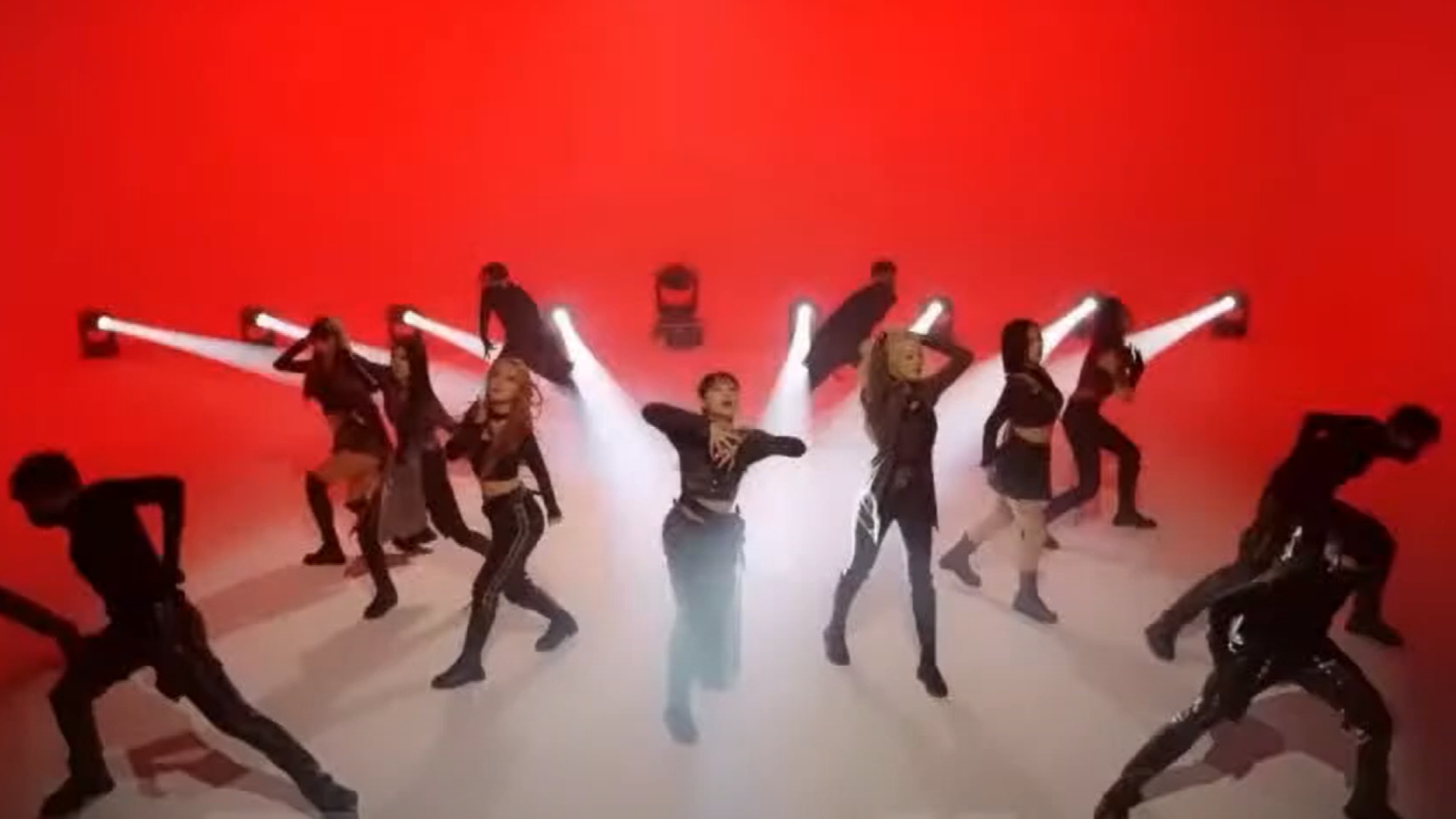

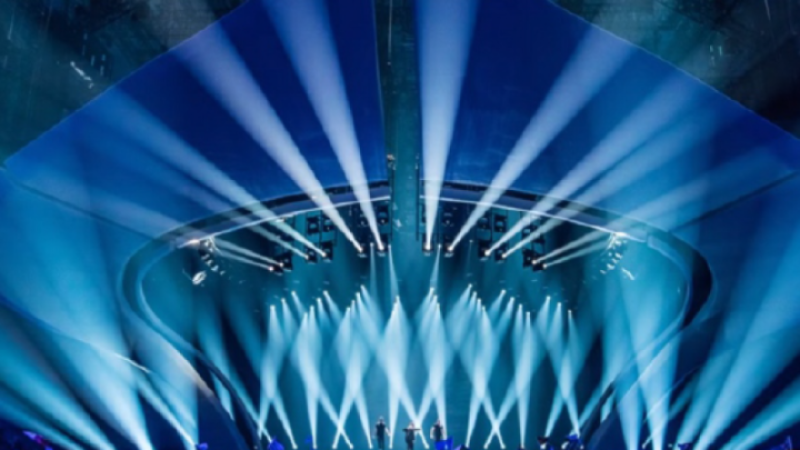

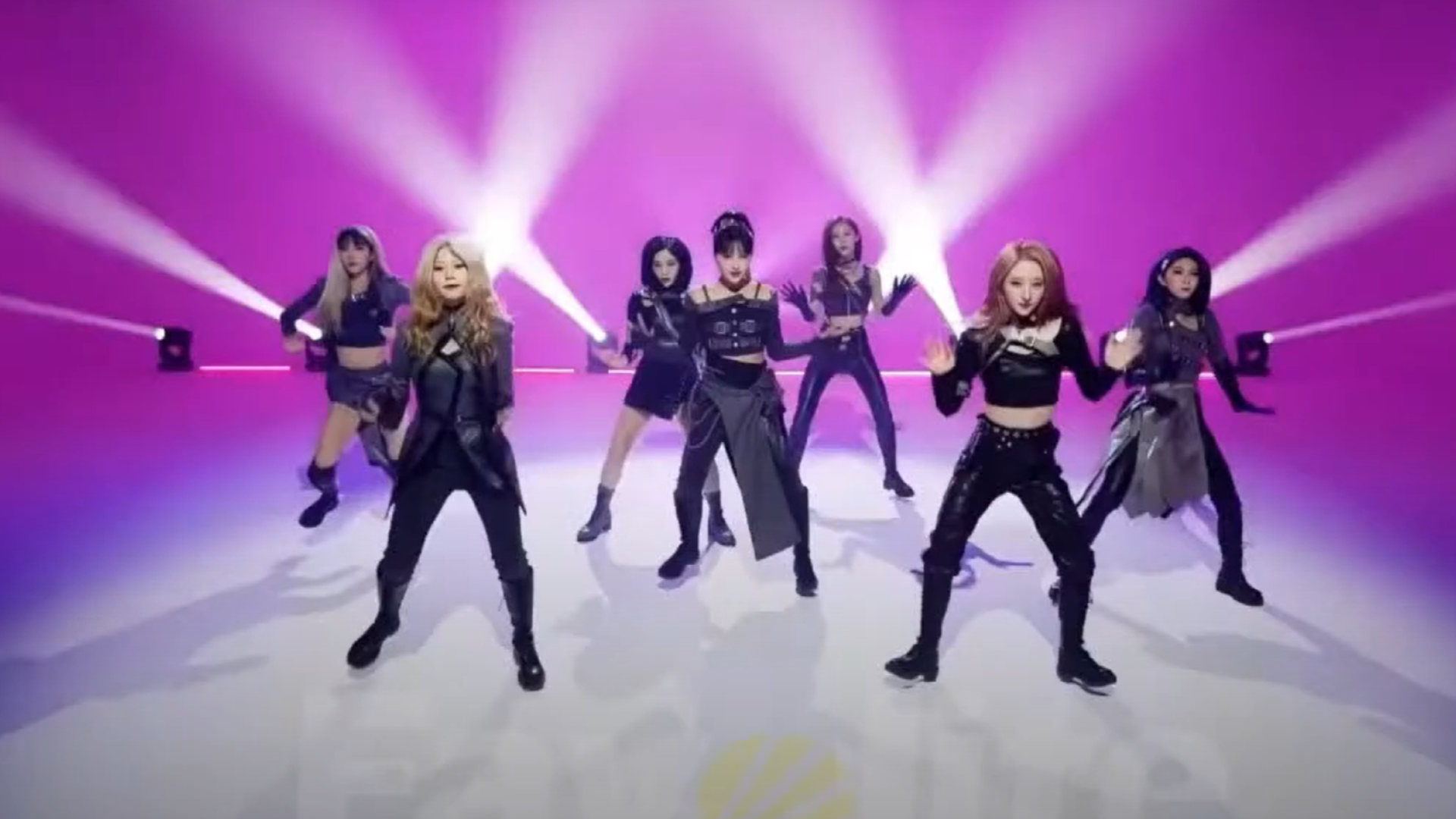

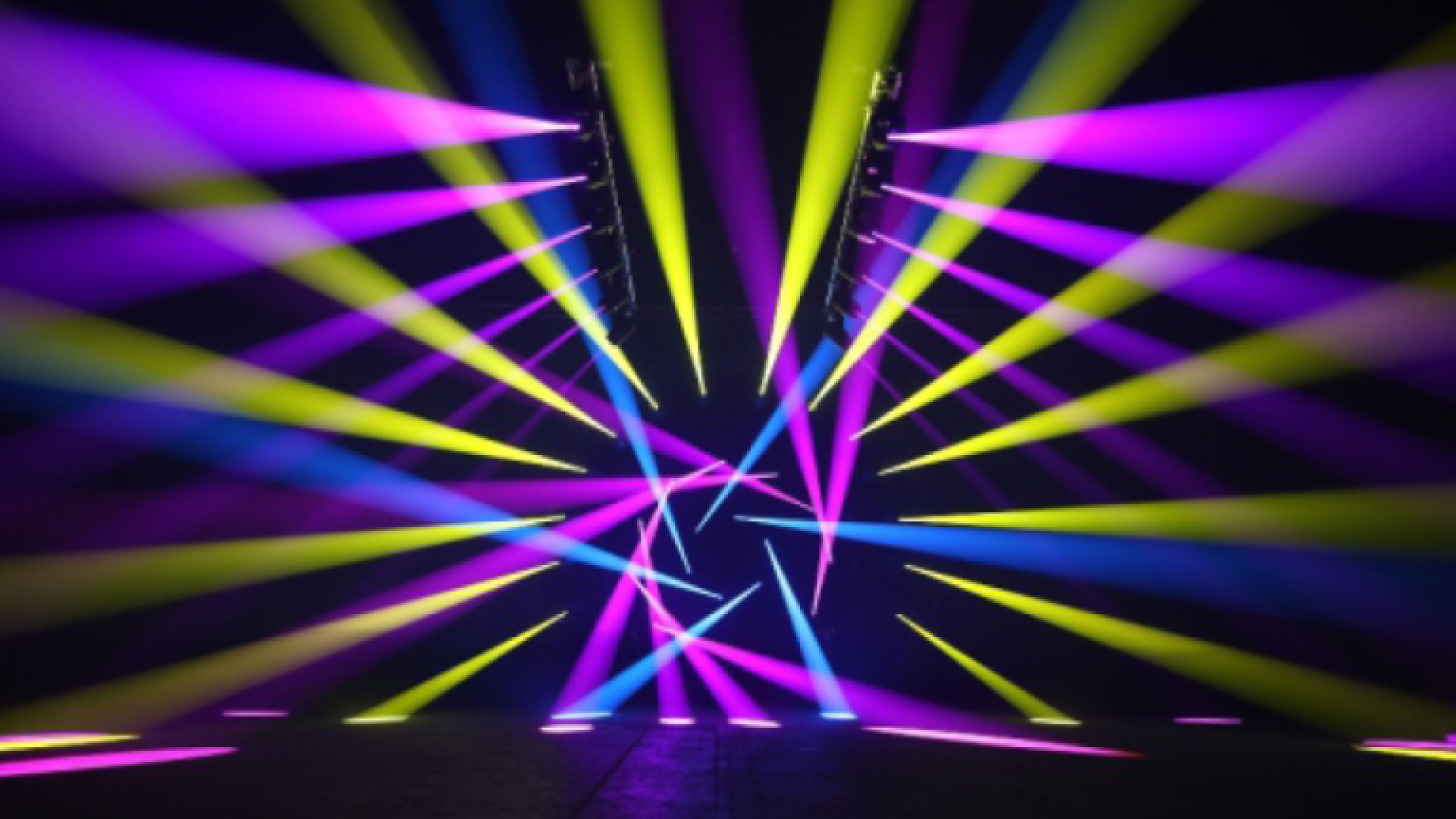

It is applicable for live performance, theater, studio, nightclubs and disco.

VERO 700 BSWP have a special motorized framing system with 4 focal planes, 4 blades that move separately, smooth, flexible blade movements at variable speed, framing system indexable over 180 degrees

VERO 700 BSWP have also uniform CMY+CTO, color wheel, fixed and rotating gobo, prism, iris, frost, focus, dimmer, strobo and continuous animation wheel.

Advanced cooling system ensure the light engine has a longer life, and is cost-effective

LIGHT SOURCE

Light Source: 580W White LED Module
Lumen: 20,500
Lifetime: 50000 Hours

COLORS

Color temperature:6500K/7000K
CRI: at least 70, CT 6500K
CRI: at least 90, CT 7000K

OPTICALS DATA

Zoom: 6.5°-42°linear adjustment

MOVEMENT

Pan movement:540°(16 bit)
Tilt movement :270°(16 bit)
Automatic reset function

EFFECTS

FEATURES:

Prism: 1 rotating, indexable prisms(4 facet prism),prism angel can option
Iris: Linear adjustable with macro
Frost: Linear heavy frost
Focus: Motorize, Auto Focus
Dimmer: 0-100% linear dimmer
Strobe: Electronic strobe,0.3-20Times/SEC
Zoom: Smooth and fast speed•Angle:6°-42°linear adjustment
Animation Wheel: Animation Wheel:Unlimited rotation,flow and flame effect

GOBOS:

• Fixed gobo wheel: 8 gobos + open
• Rotating gobo wheel: 6 HD interchangeable gobos +open
• Rotating Gobo size: Outside-27.9MM Inside-22MM;Thickness-1.1 MM
• Bidirectional variable rotation, Index functions, Bi-directional changeable speed shake effect changeable speed and flow effect
• Animation Wheel: Unlimited rotation,flow and flame effect

FRAMING SYSTEM:

Motorized framing system with 4 focal planes
4 Blades that move separately
Smooth, flexible blade movements at variable speed
Framing system indexable over 180 degrees
Framing system smooth movement and extremely accurate position
Single blade full blackout

CONTROL

Standard mode 39/41 channels, Sound control mode, Stand-alone mode Self-inspection mode
Control mode: DMX512,Protocols RDM, Wireless by wireless Solution and Art-Net
Display: Graphic LCD colorful Display.
Display battery: 3.7V rechargeable lithium ion battery
Firmware update Software: upload through DMX input

POWER SUPPLY DATA

Input voltage: 100V~240V AC 50/60Hz
Rate power: 800W@220V

TECHNICALS DATA

2.4inch color LCD screenHigh reliability touch button
Support auto flip display
Support Multi-language
Automatic monitoring of light source temperature, high temperature automatic protection
Intelligent cooling system
DMX512 Software update
Display light use time
Low level linearity, flicker free film TV
Menu setting by internal rechargeable battery without power supply (3.7V rechargeable lithium-ion battery)
Intelligent control of wind speed
Reverse display
Control panel lock
Manual programming
