PANORAMIC

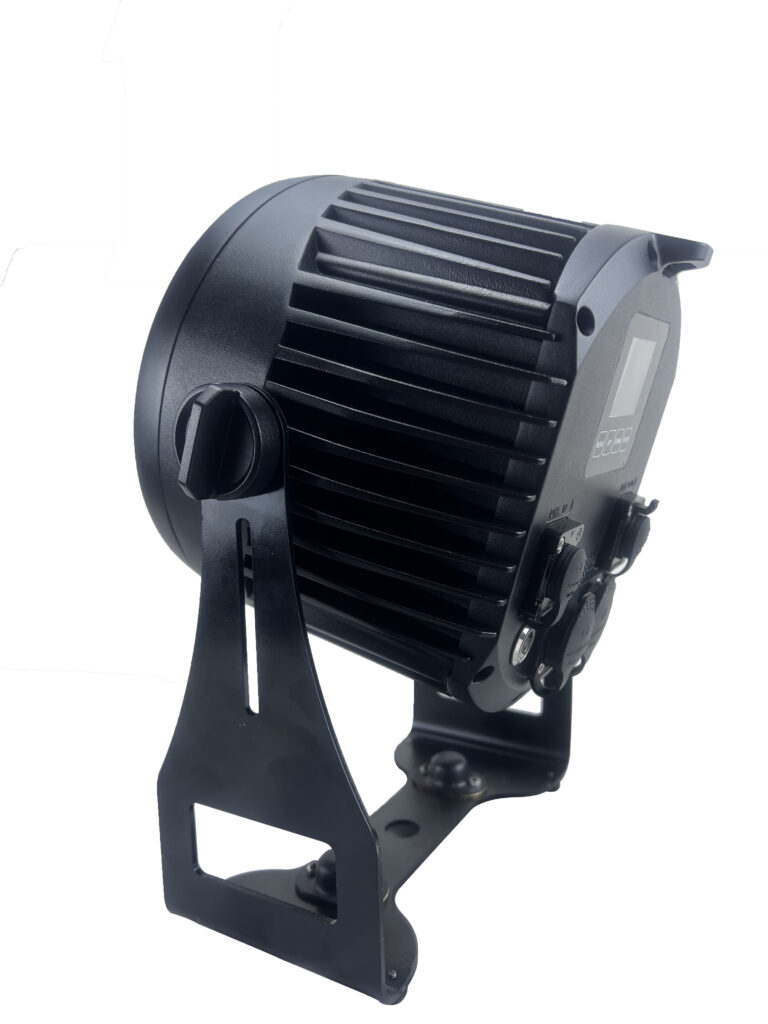

Battery Parled Outdoor

12x15W RGBWA+UV 6in1 LEDs

Linear dimming, Strobe, DMX, Wireless

IP65 Powercon and 5pin DMX

19Ah high capacity Lithium battery

TECHNICAL DATA

EASY and EASYBAT is a 12 x 15w ParLed that allow a high luminous efficiency and furthermore with its being RGBWA + UV it allows to obtain an efficient color changer capable of reproducing real, bright, intense and saturated colours.

EASY is one of the most innovative LED pars, as it offers you a DMX control mode and the ability to create effects with a pleasant view, with its Linear dimming, Strobe, DMX, Wireless control.

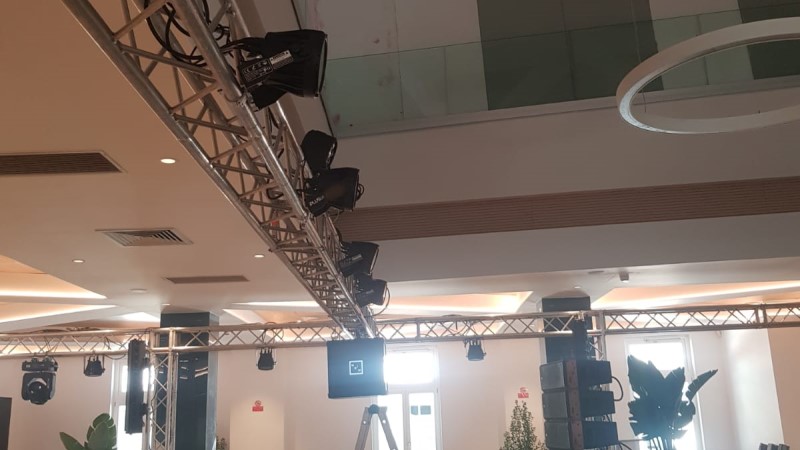

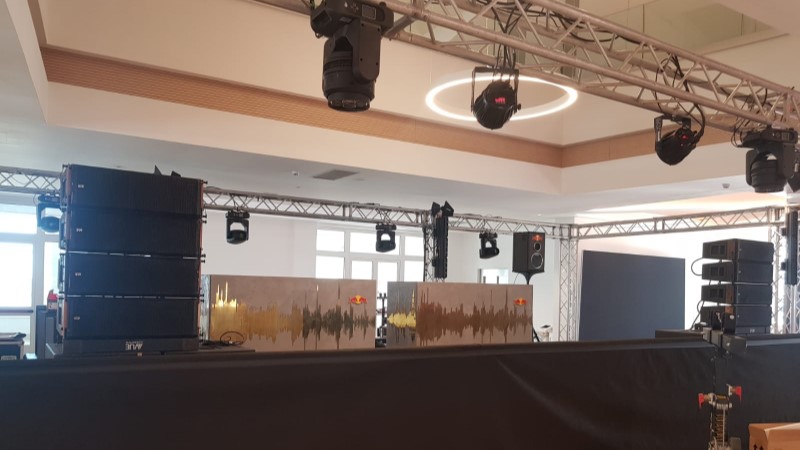

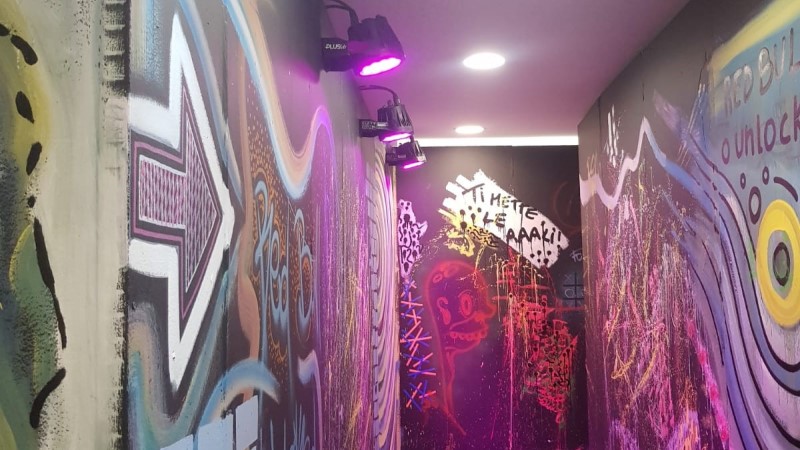

The versatility of EASY and EASYBAT makes it ideal for rental use but also for installations in any entertainment venue.

The Battery version has a 19Ah high capacity Lithium battery with charging time 7 hours from 0-100% and using time with full colors about 5 hours and with 1 color at 100% in medium operation up to 24 hour.

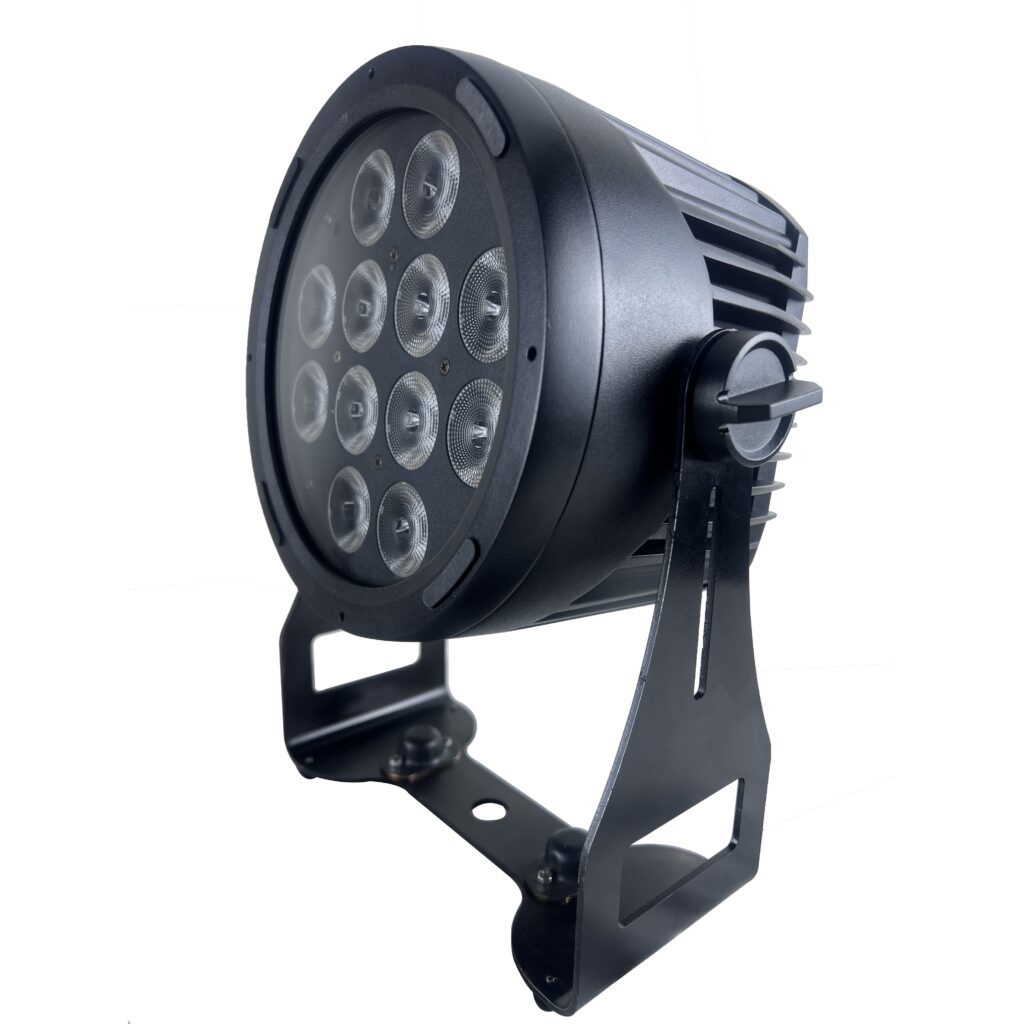

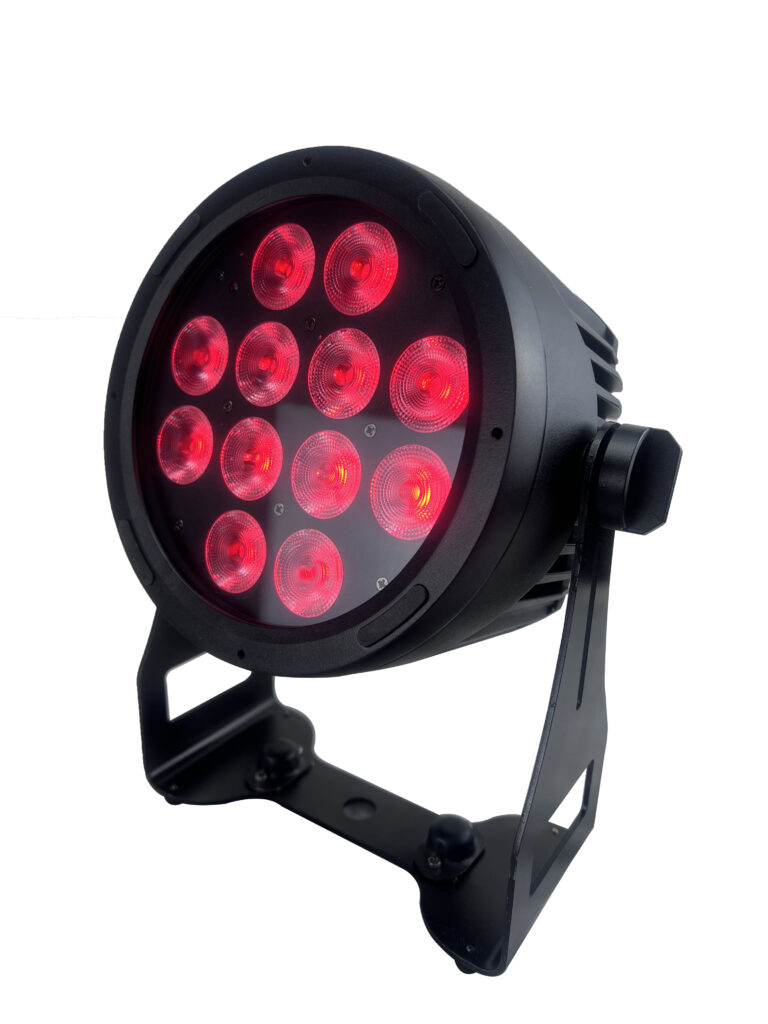

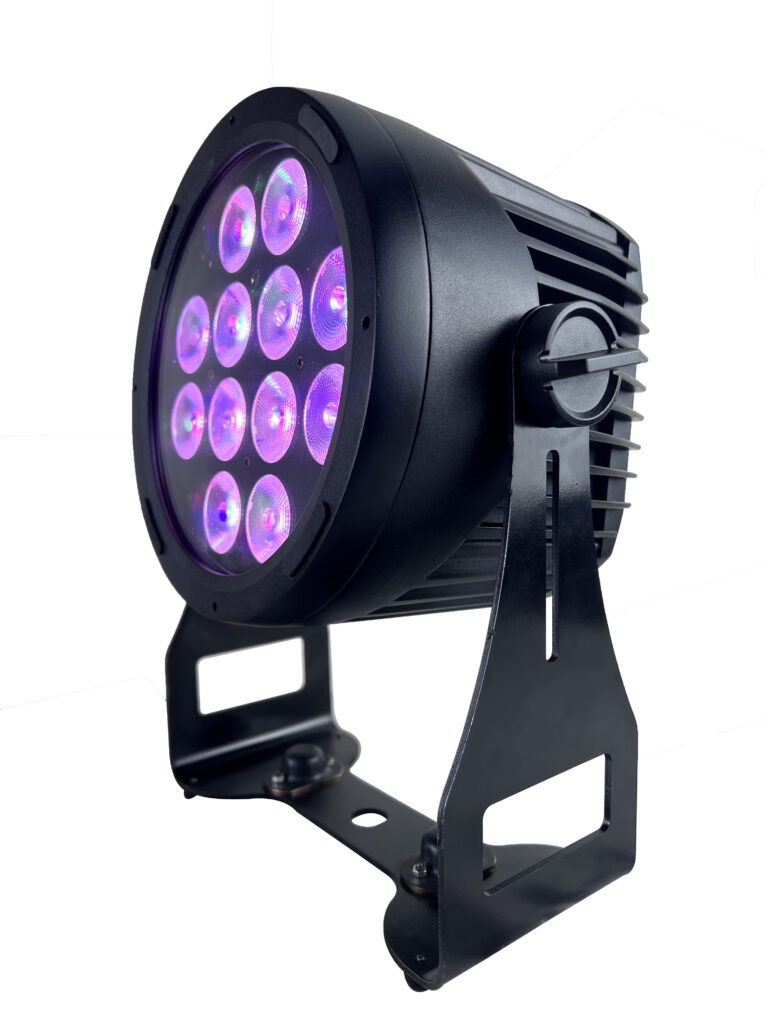

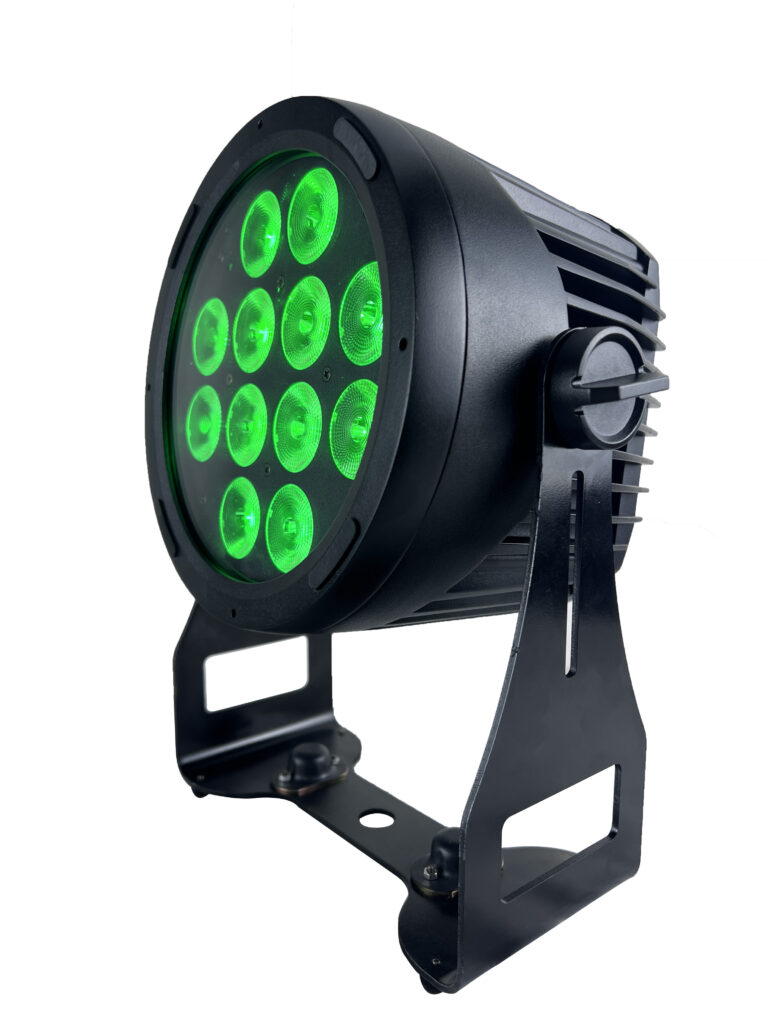

Light source: 12x15W RGBWA+UV 6in1 LEDs

Beam angle: 25°

Built-in Effect: Macro color, static color, color fade, color jump, color pulse
Electronic Dimming: 0-100% linear dimmer

DMX Channels: 6/10CH
Control Mode: DMX, Wireless
Battery: 19Ah high capacity Lithium battery

Battery: 19Ah high capacity Lithium battery
Charging time: 7 hours from 0-100%
Using time full colors: about 5 hours
Using time 1 color to medium operation: about 24 hours

Power Voltage: AC 100-240V, 50/60Hz

Indicators: OLED digital display
LED Lifespan: 100,000 hours life expectancy
Working temperature: -25°C~+35°C

Power connector: IP65 power cord

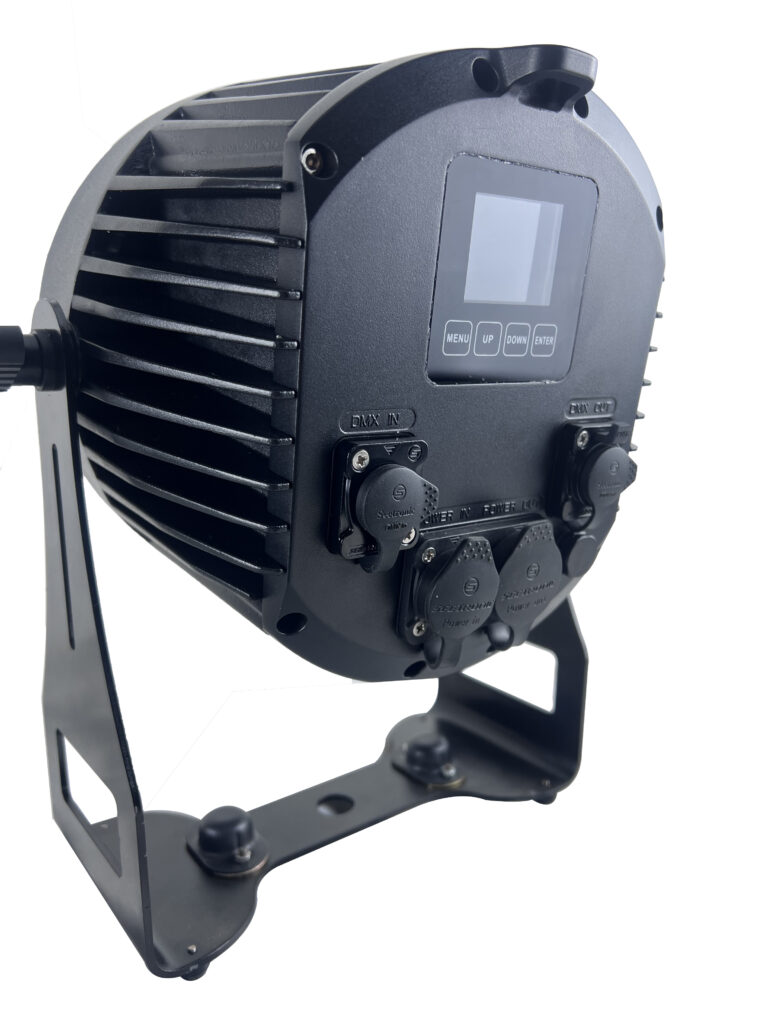

IP65 DMX in/out: 5pin XLR connnector

IP65 power in/out: 5pin Seetronics PowerCon connector

Housing case: Die-cast Aluminum body

Protection class IP: IP 65

Display: TFT display 4 touch button

Dimension:  257(L) x 296(W) x 259(H) mm

Weight: 5.8kg
