PANORAMIC

Moving Head Wash Beam Zoom

7×60W Osram RGBW LEDs

New Version 7x60W RGBL LEDs Pixel Control

Big zoom range 2.5-60°

High-resolution stepper motors

Macro effect with variable speed

Super uniform light beam with no colour shadows

Adjustable speed stop/strobe effect with instantaneous blackout

Lumenradio DMX, Artnet, sACN(RGBL), DMX512, RDM, Battery Display

TECHNICAL DATA

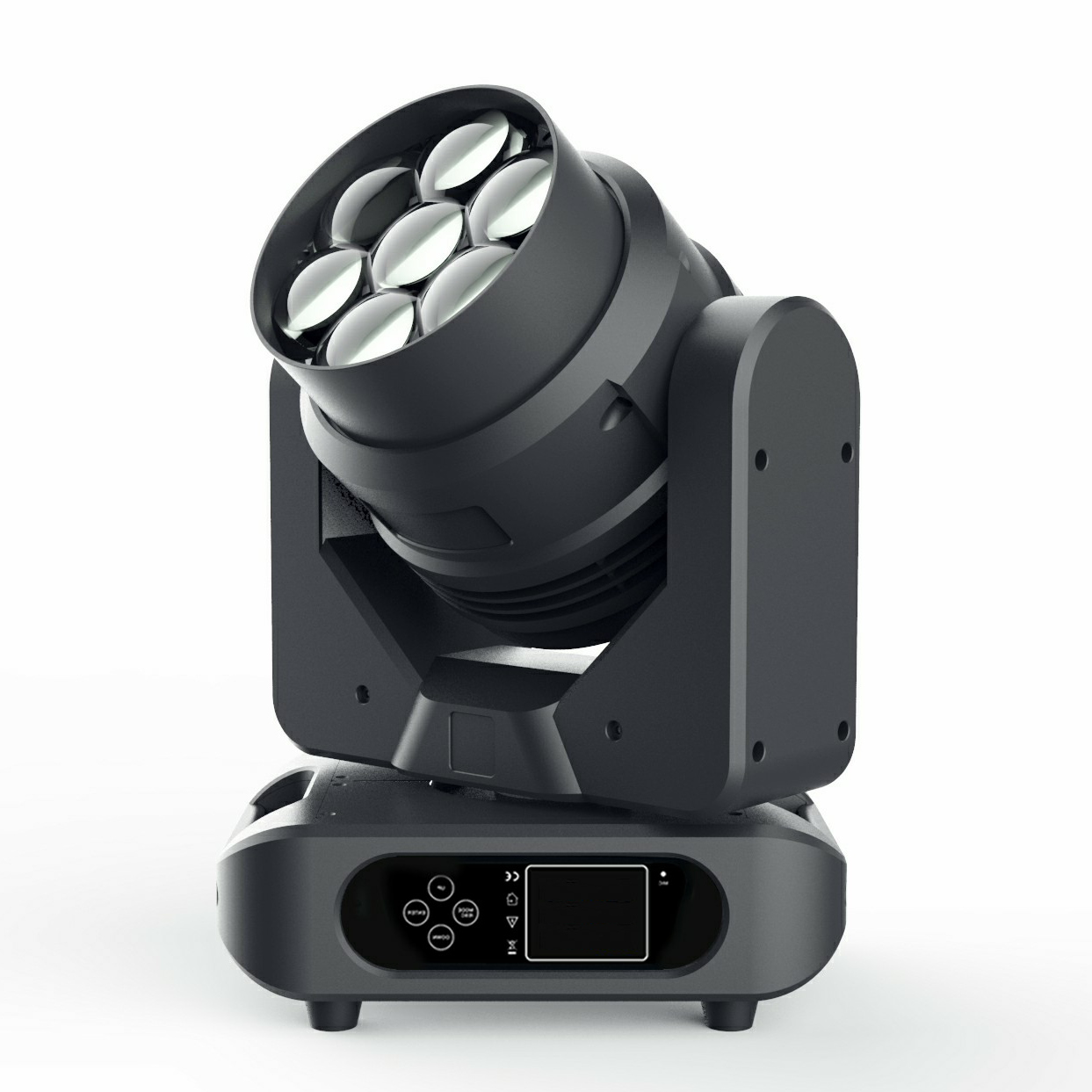

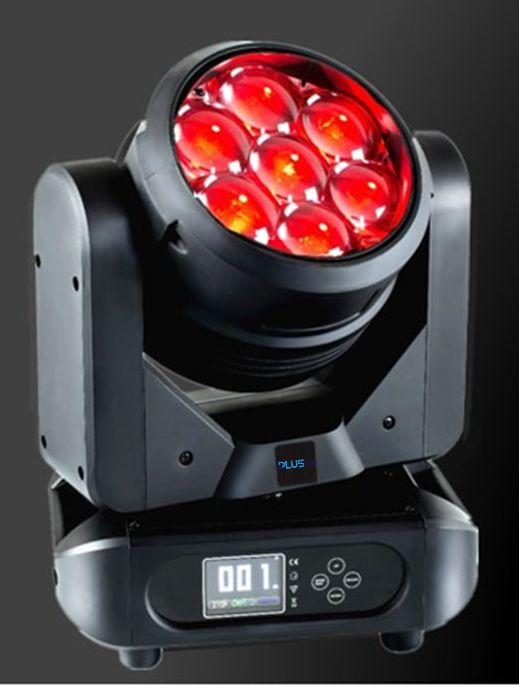

miniART is one of the flagship products of Pluslite.
A compact and functional machine that offers multiple control possibilities DMX512, Wireless Sweden DMX, RDM, ARTNET, sACN(RGBL Version).

It is a Moving Head Wash Beam Zoom LED of last generation and adopts 7(seven) powerful 60W OSRAM RGBW LED which features high brightness and stability. The NEW VERSION miniART PIX is 7×60 RGBL LED allowing for a wider color palette with CRI90 and pixel control.

miniArt has a super high-speed movements and effects with three stepper motors, a Zoom angle: 2.5°-60°, 1:24 ratio, wide zoom-range, so as to obtain a sharp beam, uniform wash, super smooth dimmer

Highly efficient optical system, high brightness, 3 times brighter than Clay Paky k10.

The miniART is made of a new type of high temperature strength of engineering plastic and cast aluminum with super silent cooling and temperature-controlled cooling system

Streamlined design, it is compact and stylish, with a total weight of 9 kg Which is easier for installation.

The fixture is designed and manufactured strictly following CE and RoHs Standards,complying with international standard DMX 512 protocol, independently controlled and linkable with each other for operation. Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications

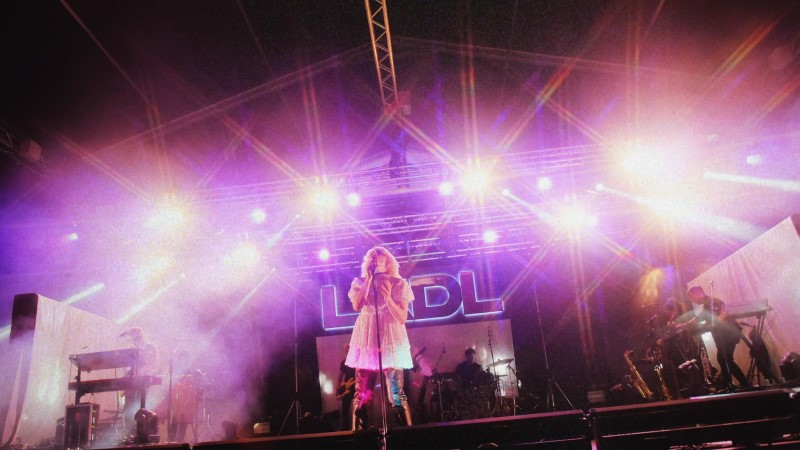

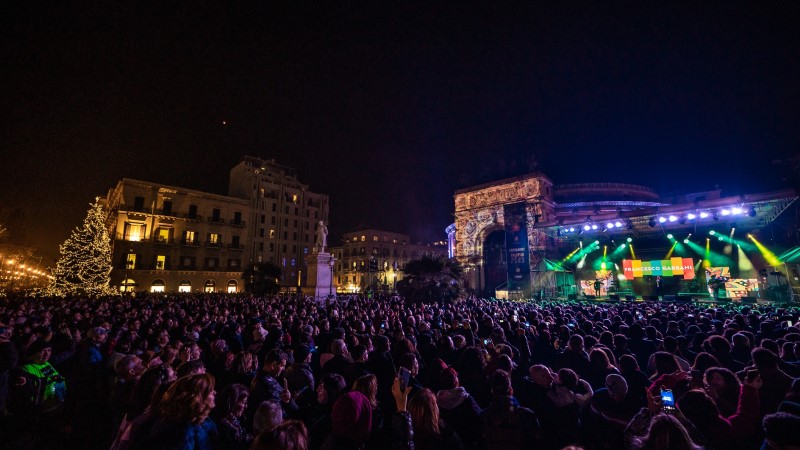

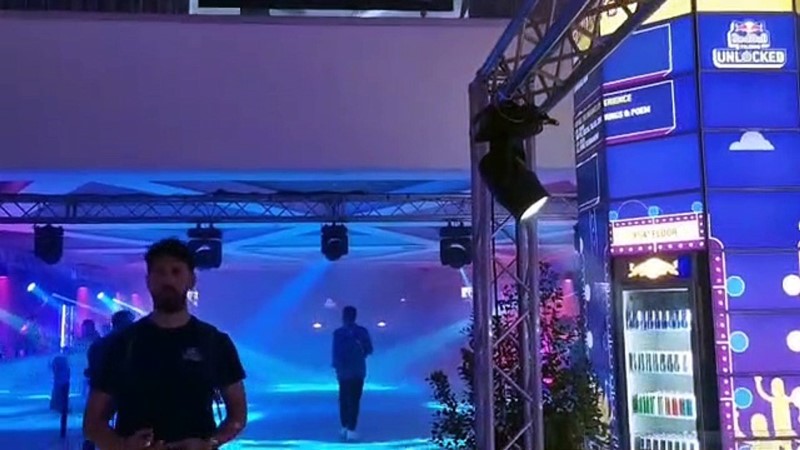

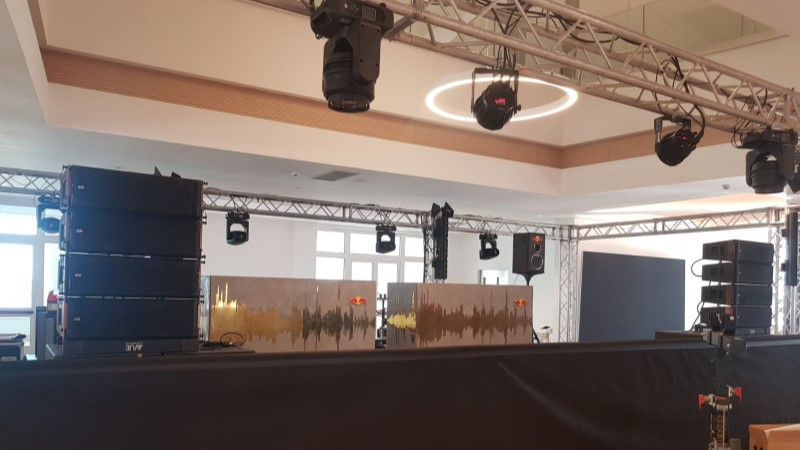

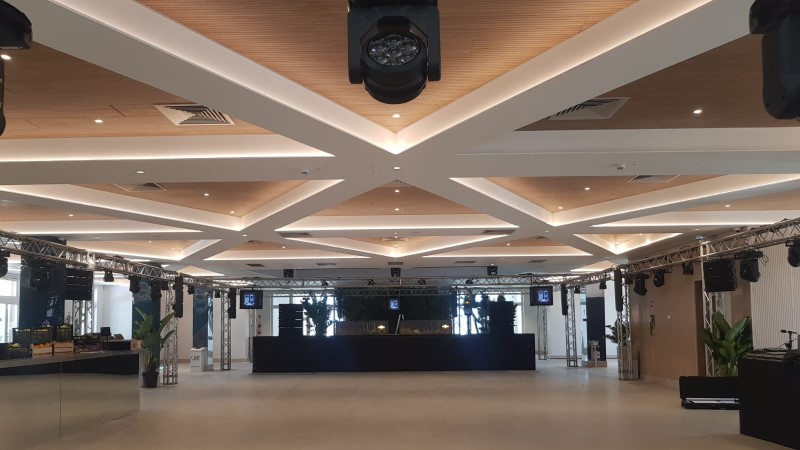

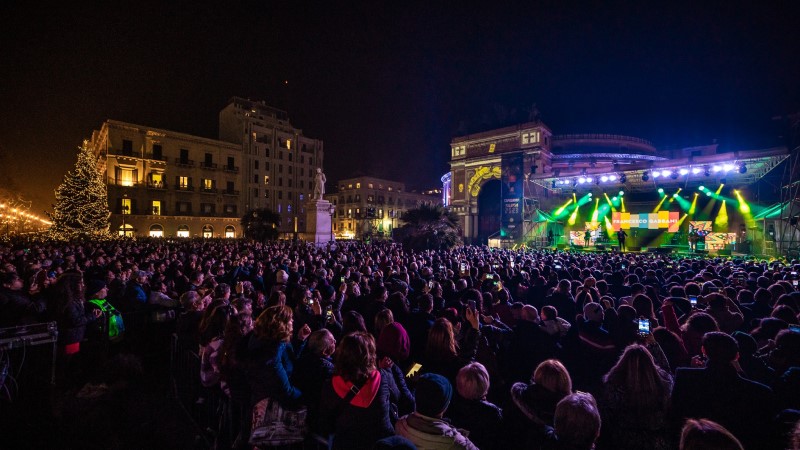

Suitable for various event productions, theatre, light show, night club, entertainment, live events, concert tour, music festival, bar, virtual events

Light source:7×60W Osram RGBW LEDs,50,000 hs.

New Version 7x60W RGBL LED CRI90

Color temperature: 2500-8000k adjustable

Linear color mixing with unlimited colors, dynamic colour macro effect with variable speed

Super uniform light beam with no colour shadows

  • 2.5°-60° Electronic Zoom angl
  • Wash, beam effect modes, multiple macros
  • 2.5°-60° Electronic Zoom angle
  • Digital Wash-Beam Framing effect
  • Beam edge softening control (in Wash mode)
  • 0-100% linear electronic dimmer without color variation
  • Adjustable speed stop/strobe effect with instantaneous blackout
  • Dedicated channel for color temperature setting
  • auto-tuning color
  • Pixel Control for New Version RGBL CRI90
  • Control mode: International standard DMX512
  • Standard mode: 21channels, Sound control mode, Stand-alone mode
  • Lumenradio DMX, Artnet, sACN(RGBL Version) ì, DMX512, RDM, Battery Display
  • Power consumption: 500W@220V
  • AC100-240V,50/60Hz
  • LED Over temperature protection
  • Advanced cooling system,intelligent control of wind speed
  • DMX Software update
  • Show software version number
  • Display LEDs and lanterns use time
  • Gravitation sensor for auto screen positioning
  • 100% brightness without stroboscopic problem
  • Special flicker free management for HD and UHD cameras, ready for 8K and 16K
  • 100% brightness without stroboscopic problem
  • Manual programming function
  • Manual fine calibration function
  • Extremely accurate positioning
  • High-resolution stepper motors ensure extreme accuracy and smooth movements.
  • Auto-positioning,pan movement: 540°(16 bit),tilt movement:270°(16 bit)

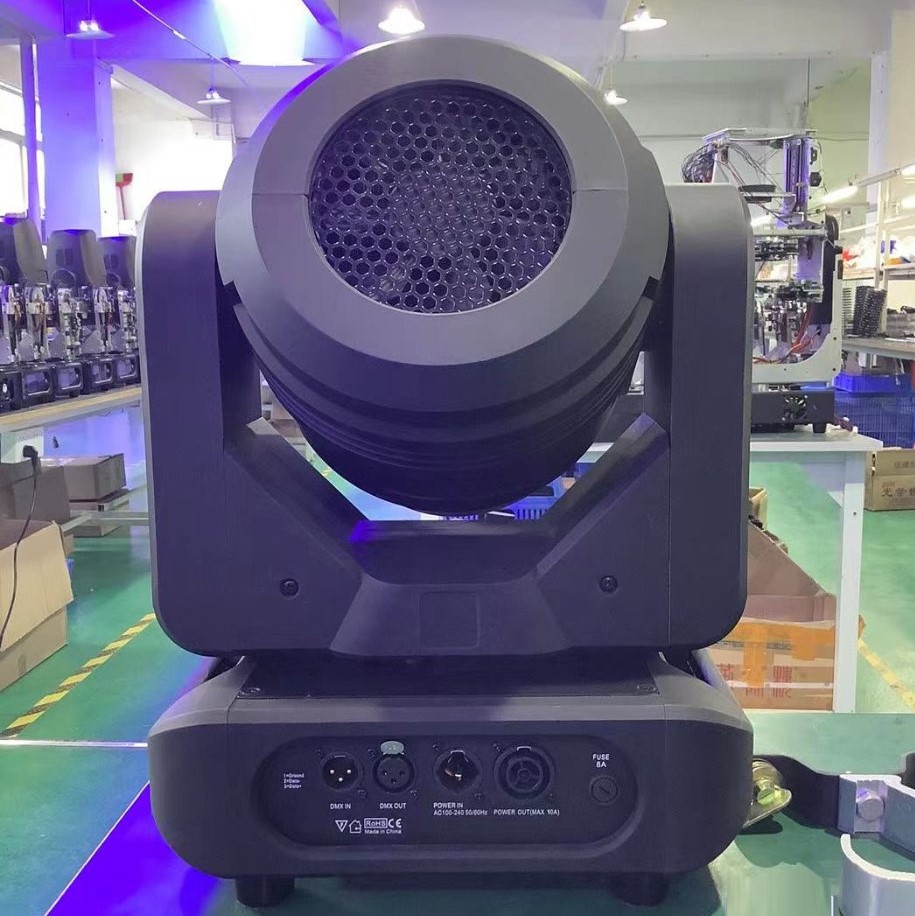

  • 3-pin/5-pin DMX512
  • Product size: 410 x 320 x 270(MM)
  • Flight case size:(4in1)790*520*620MM
  • Net weight:9KG
