Linear

PANORAMIC

Bar Led pixel for outdoor

18x15W RGBWA + UV 6in1 LED(Pixel)

OLED touch screen display

Single pixel control, strobe, dimmer, static and macro color etc..,

DMX512,auto program, sound program, master/slave mode

TECHNICAL DATA

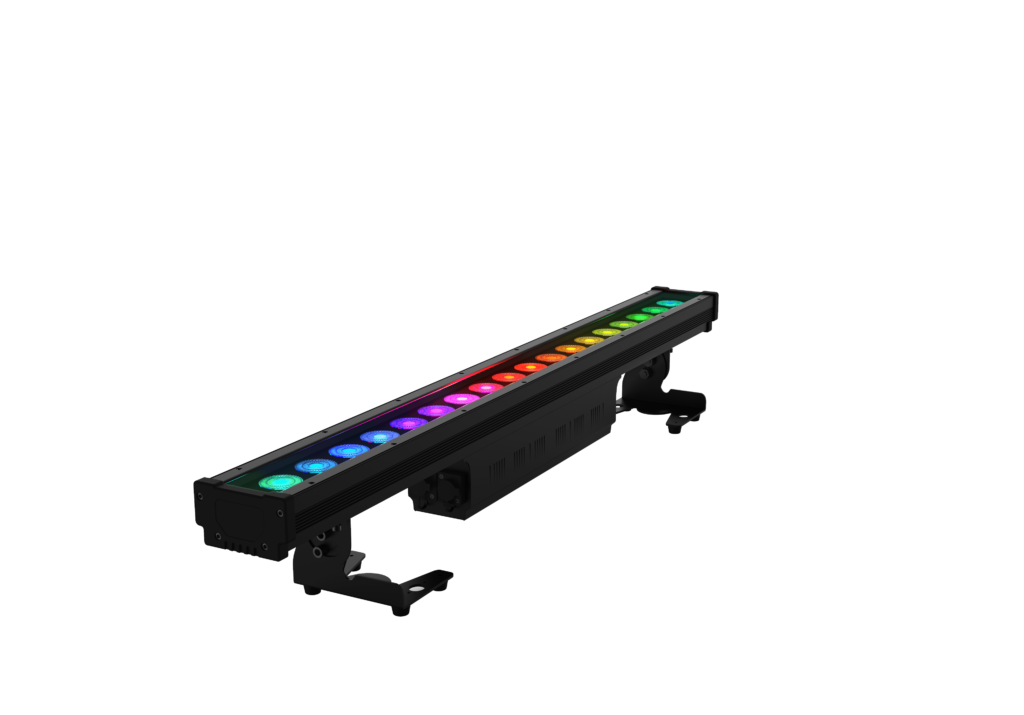

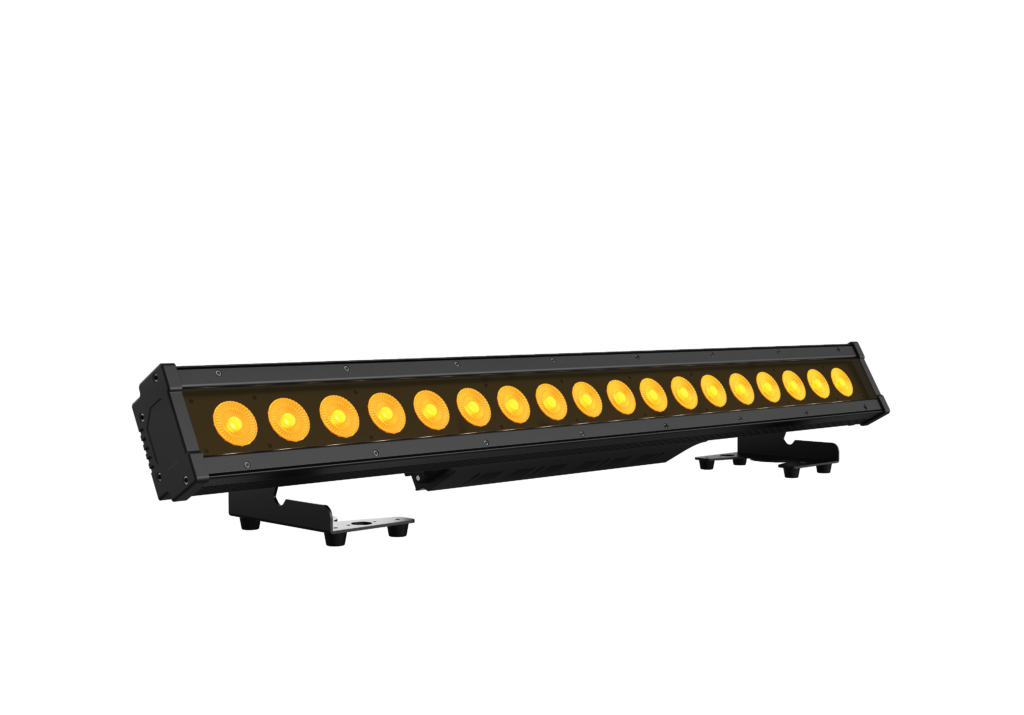

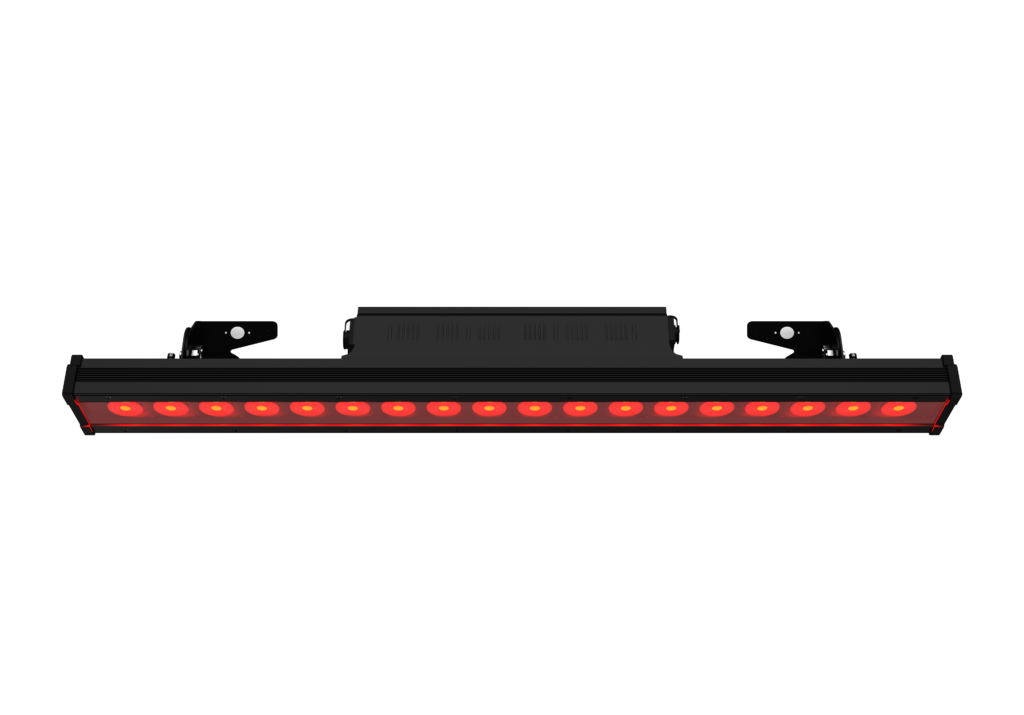

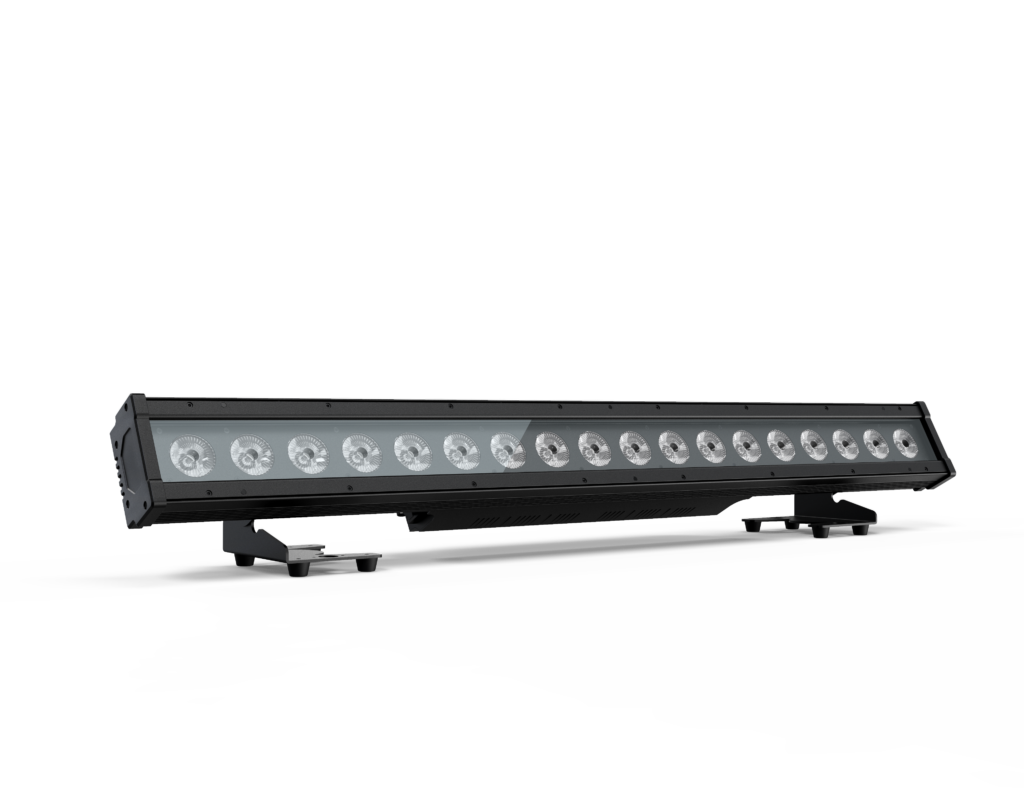

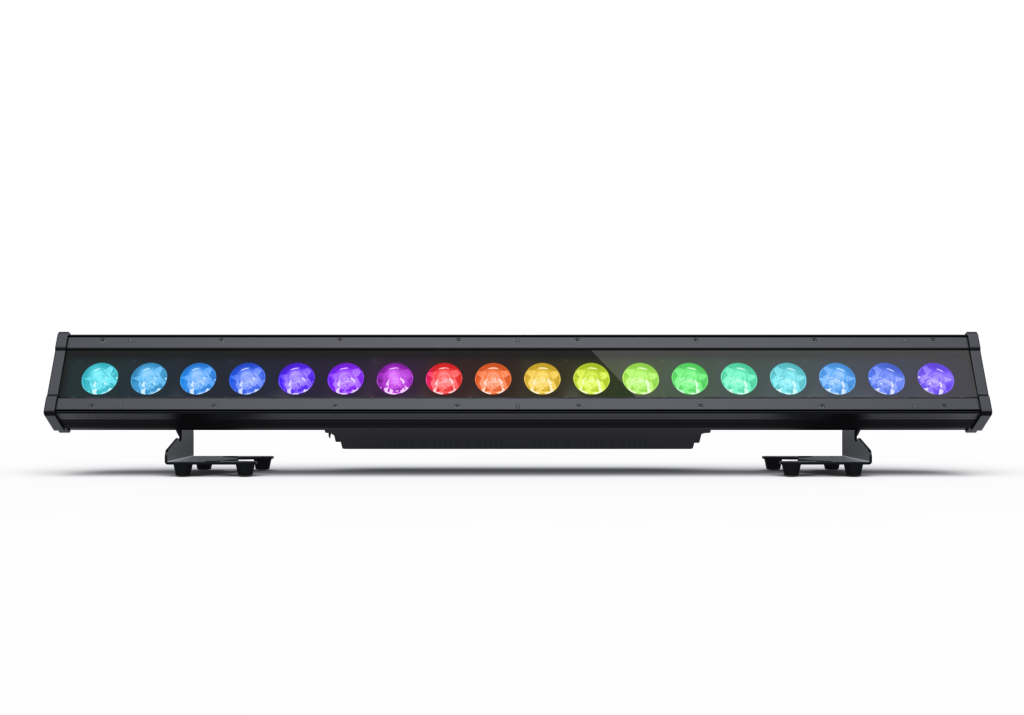

LINEAR is a 18x15w IP65 outdoor wall washer. It is a special LED bar with OLED display and a complete variety of programs and effects. Its high efficiency LED and with a variety of colors thanxs his RGBWA+UV 6in1 LED. It has programs such as Single pixel control, strobe, dimmer, static color, color macro, color temperature correction, auto program, sound programs, etc. The largest program shows the brightness and dyeing effect of light.

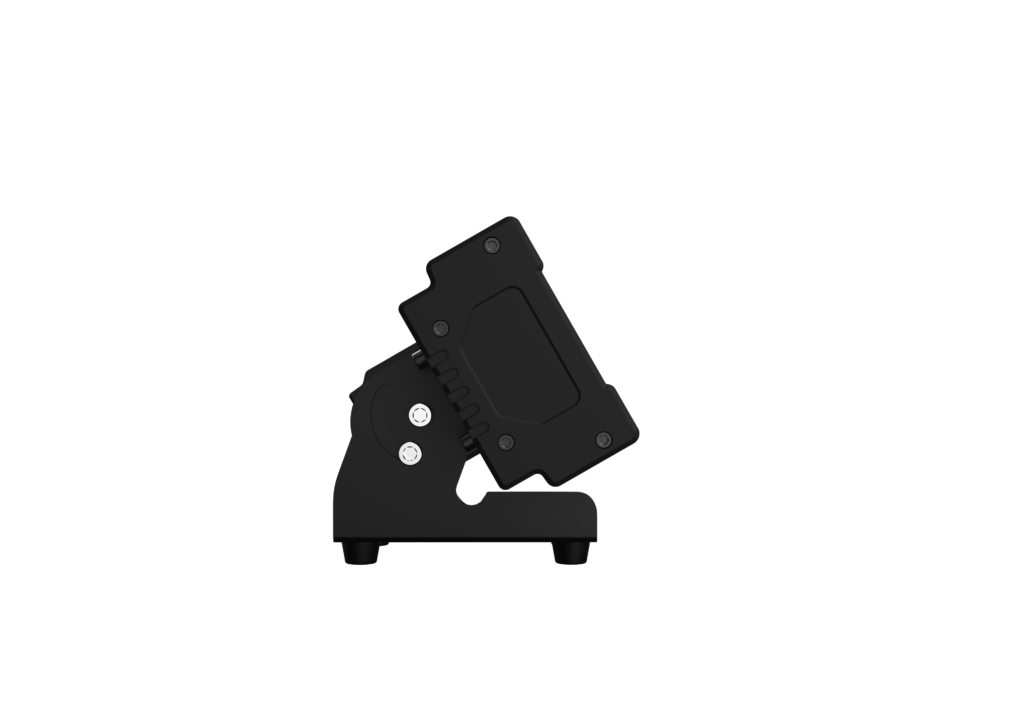

LINEAR has include the flexiable holder in different directions 180 degree

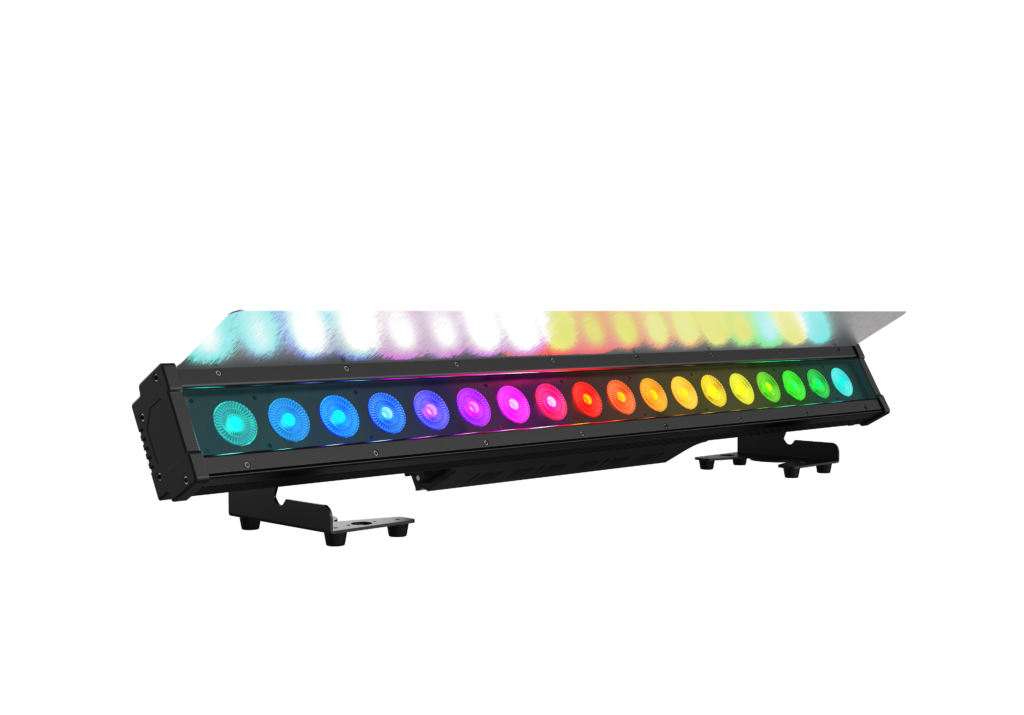

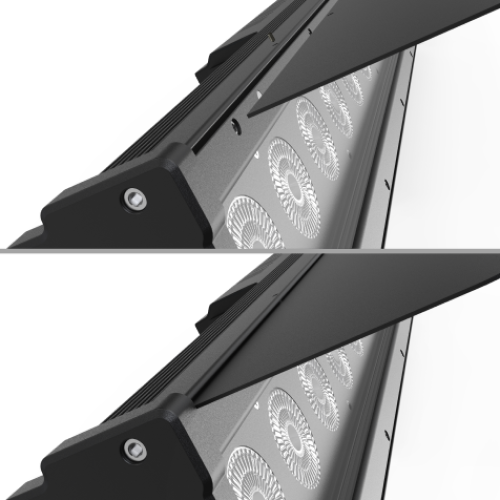

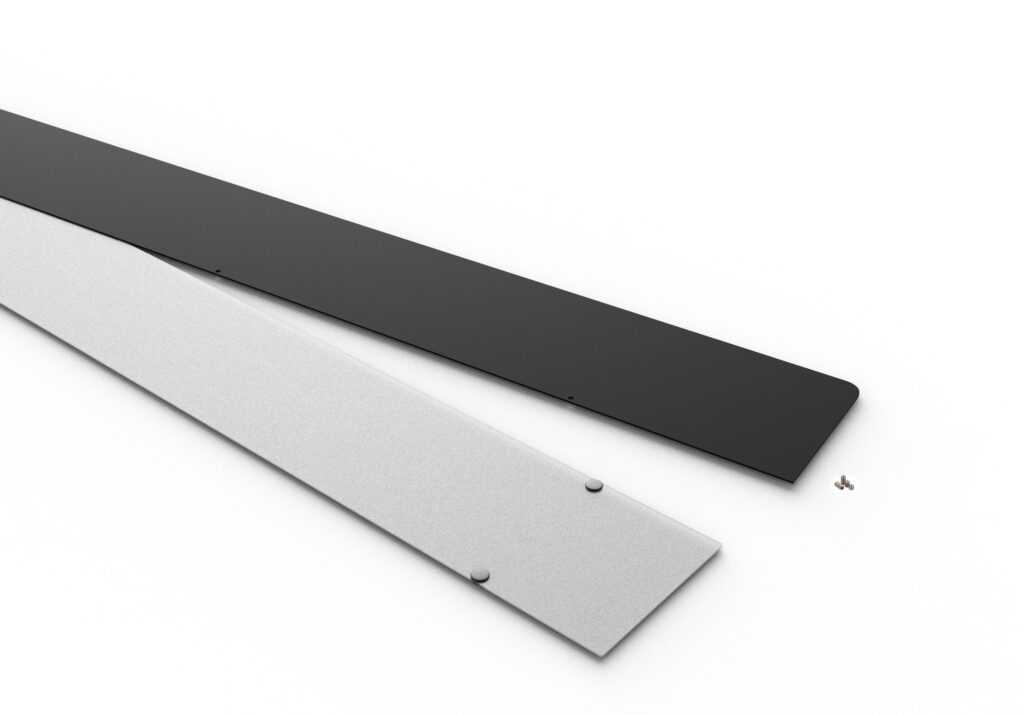

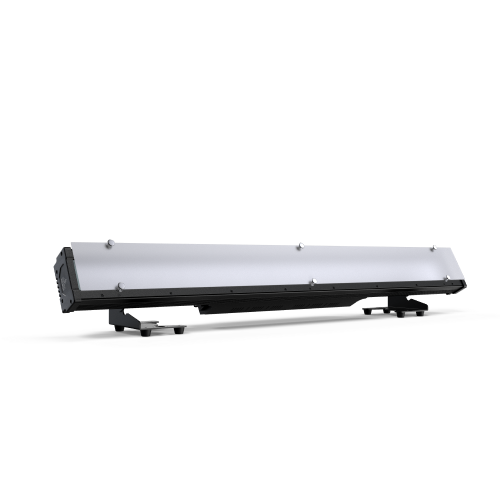

LINEAR have as optional the barndoor and various filter diffuser 70% ~85%, diffuser 2 angle change 60×15° or 15×60°

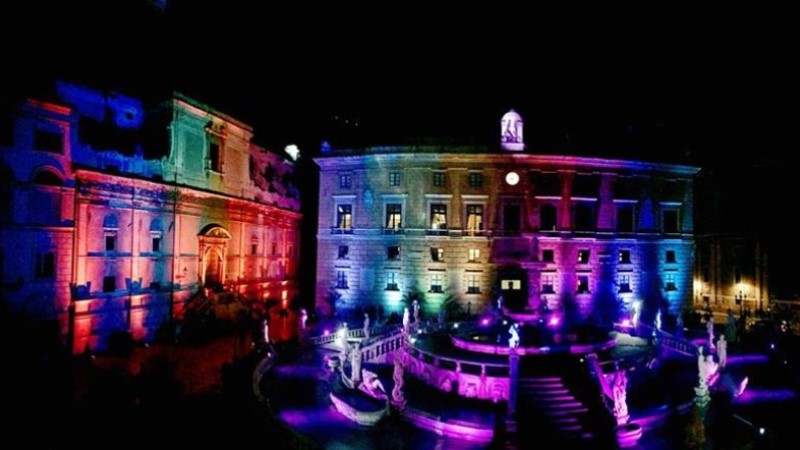

Ideal for creating suggestive atmospheres and effects both for rental, broadcast and TV situations and for fixed installations.

LIGHT SOURCE

18x15W RGBWA + UV 6in1LED(Pixel)

OPTICALS DATA

Beam Angle: 25°

EFFECTS

Single pixel, control, strobe, dimmer, static color, color macro, color temperature correction, auto program, sound programs

CONTROL

DMX512, auto program, sound program, master/slave mode;
DMX mode: 6/8/11/108/110ch ;
DMX Function: Single pixel

POWER SUPPLY DATA

AC100V-240V/50-60Hz

TECHNICALS DATA

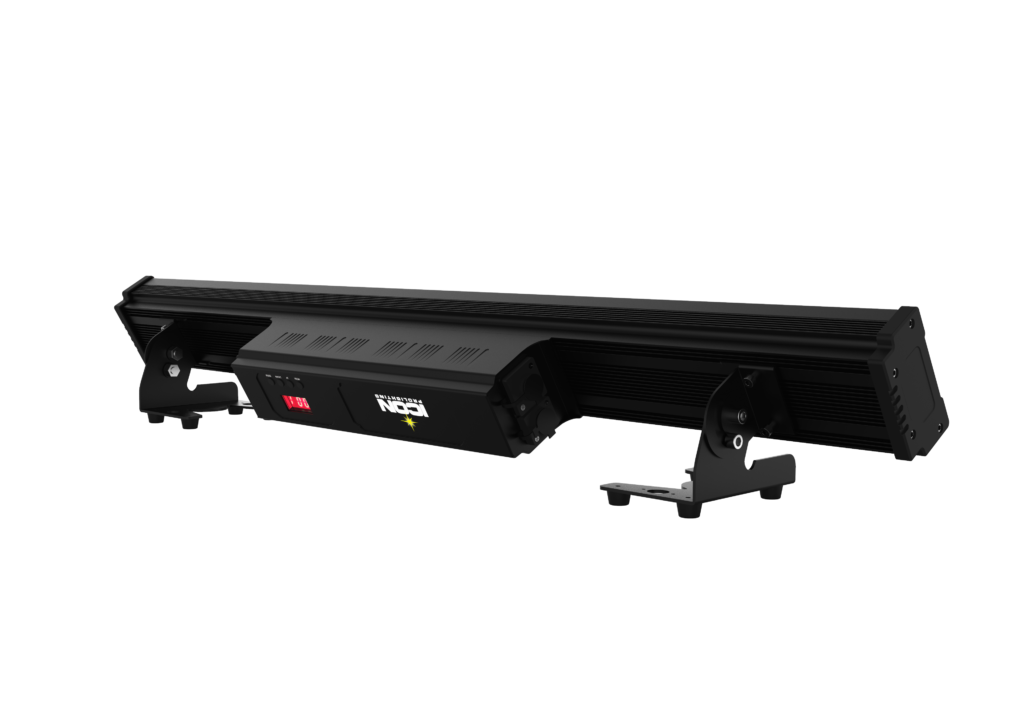

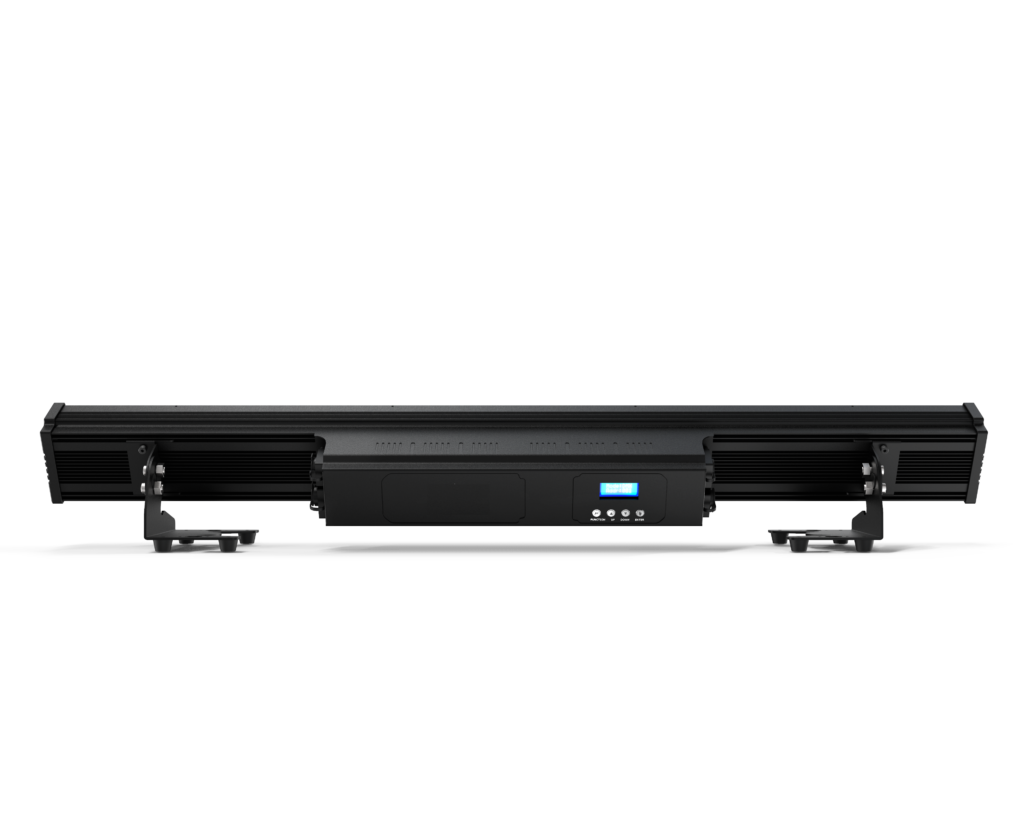

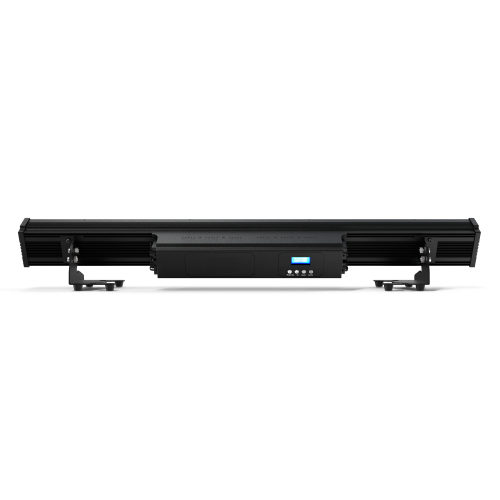

Indicators: OLED display;
Cooling: Aluminum housing for heat dissipation;
Accessories:Foot stand 135degree movement, Barndoor for two side, Diffuser Type1: 70% ~85% diffuser, Type2: angle change 60×15° or 15×60°
T°Operativity: -30℃~40℃
