PANORAMIC

Battery uplight

4*12W 4in1 RGBW

0-100% linear dimmer and strobo 0-15 Hz

Change angle quickly

Wireless DMX

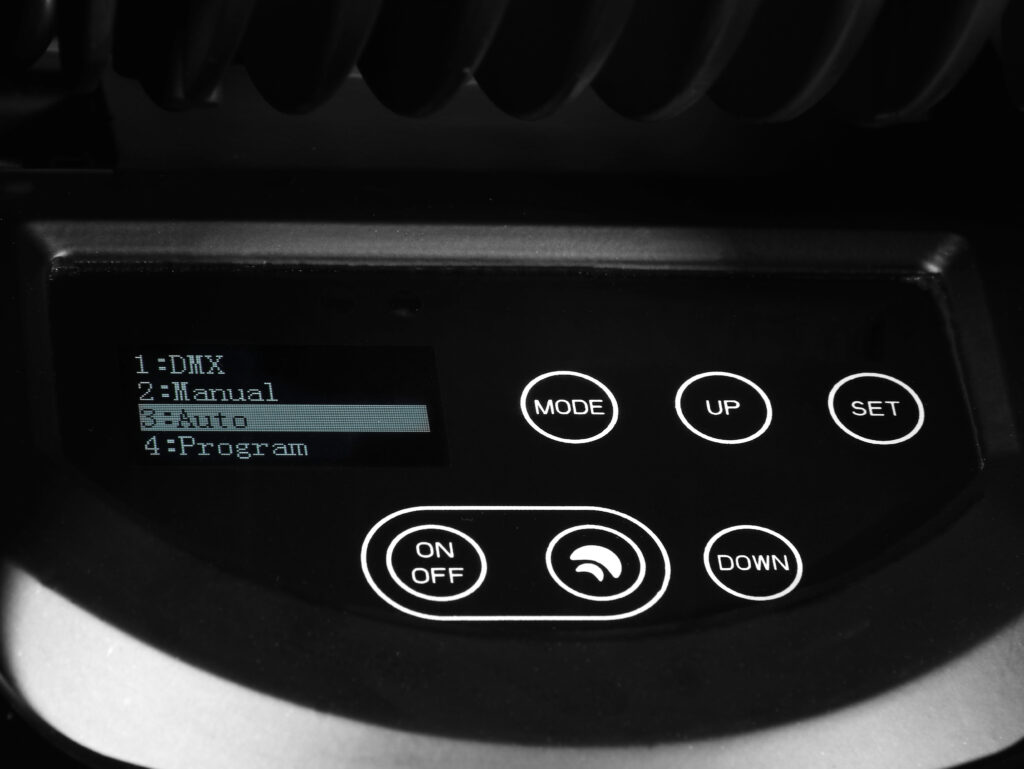

OLED touch digital display

TECHNICAL DATA

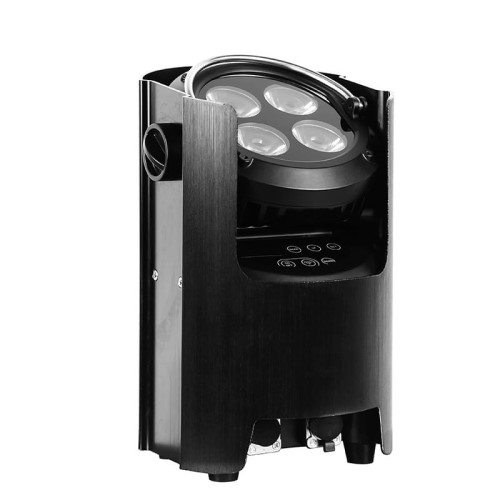

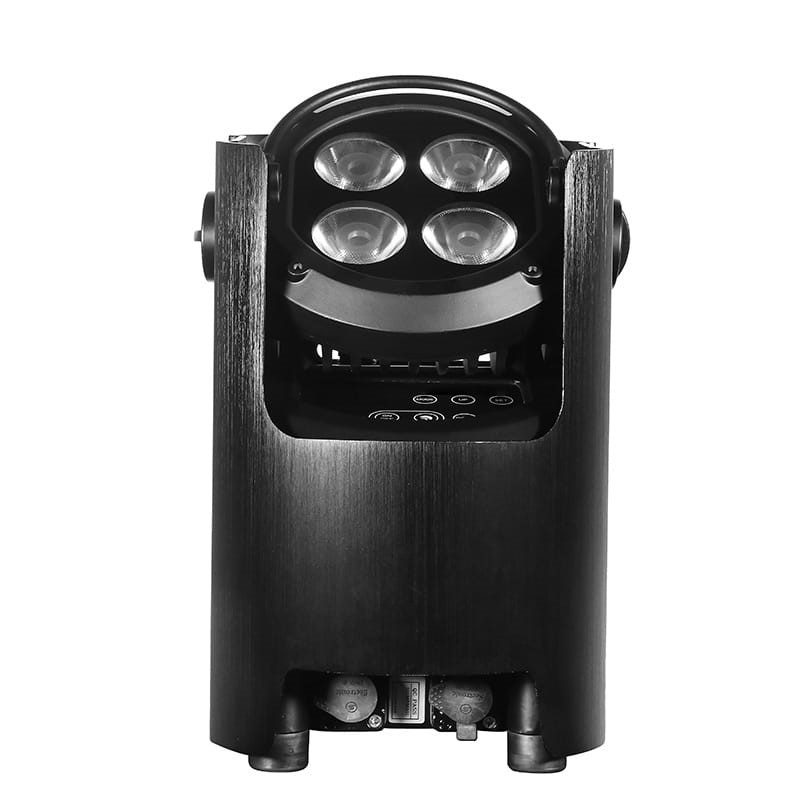

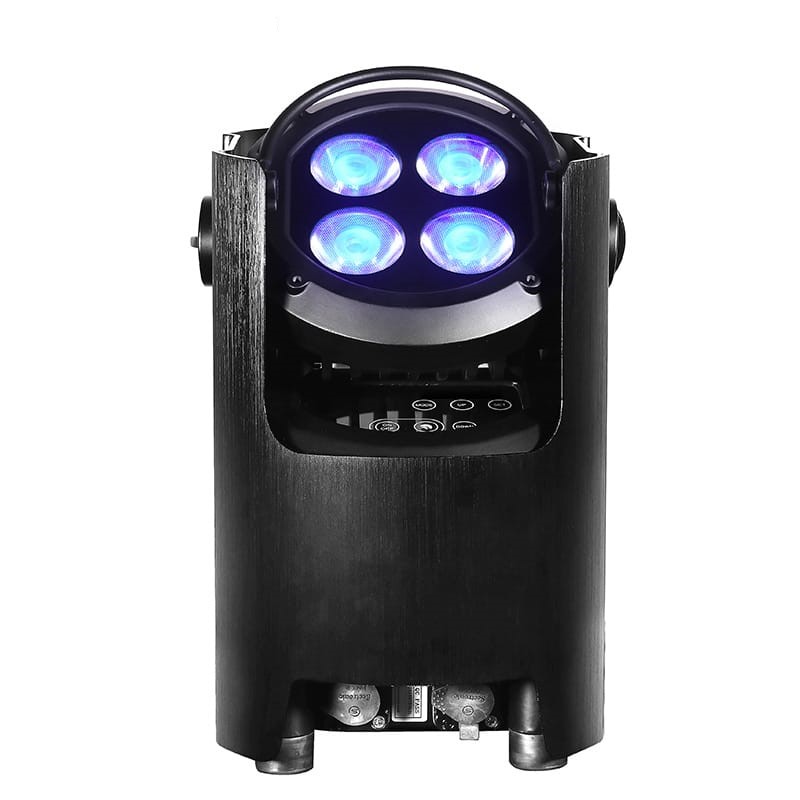

The PLUSBAT is a high-end innoveted uplight LED battery light IP54

This fixture is a DMX intelligent, IP rated LED battery uplight fixture can be used in a stand alone mode or connected in a Master/Slave configuration. This par has multiple operating modes: RGBW dimmer mode, Static Color mode, Auto Run mode, Color Macro mode, and DMX control.

PLUSBAT is an extremely compact and rugged event lighting fixture with lithium ion battery and original Wireless Solutions Sweden built-in.

It is equipped with 4×12 W RGBW combined with dedicated high class optics ensuring a bright and well-defined 10° beam.

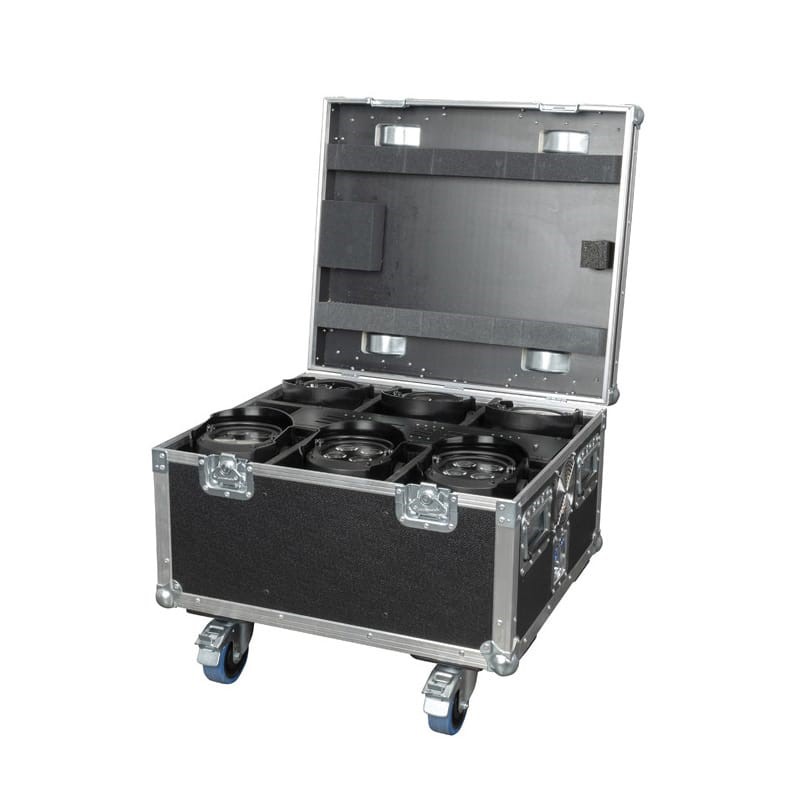

Separate chargers or charger cases are available as options to fit your desired solution.

The battery has a lifetime of up to 15hrs at RGBW. Recharge Time about 6 hours

The projection angle of the fixture can be adjusted and optional beamshapers are available to create desired beam angles.

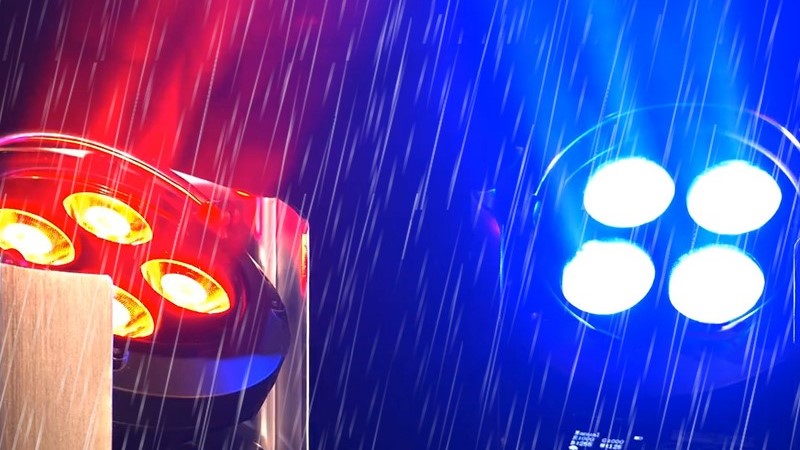

With the IP54 rating this LED battery light is the right choice for professional rental use. A very useful feature is the “Working time”.

With this feature you can specify the actual working timeframe of the unit from 1 to 15hrs max.

PLUSBAT will then automatically divide the current capacity of the battery to make sure that the unit will work the length of the specified time.

This feature comes in very handy when there is no opportunity to charge the battery but operating it is still required.

This product is intended to be used by professionally trained personnelonly.

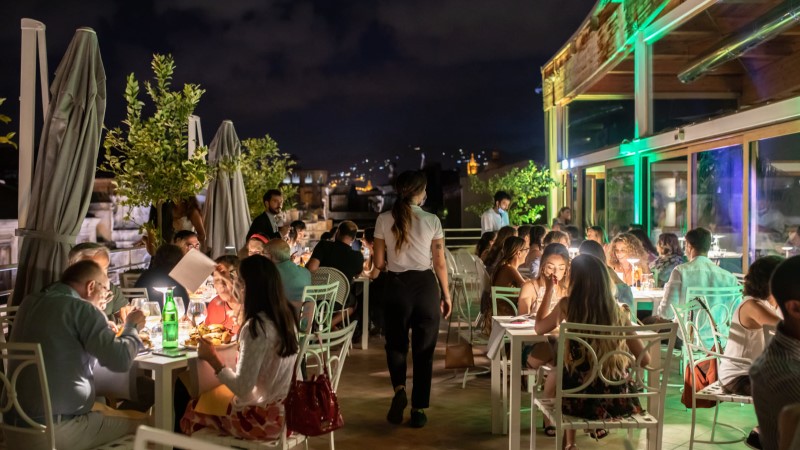

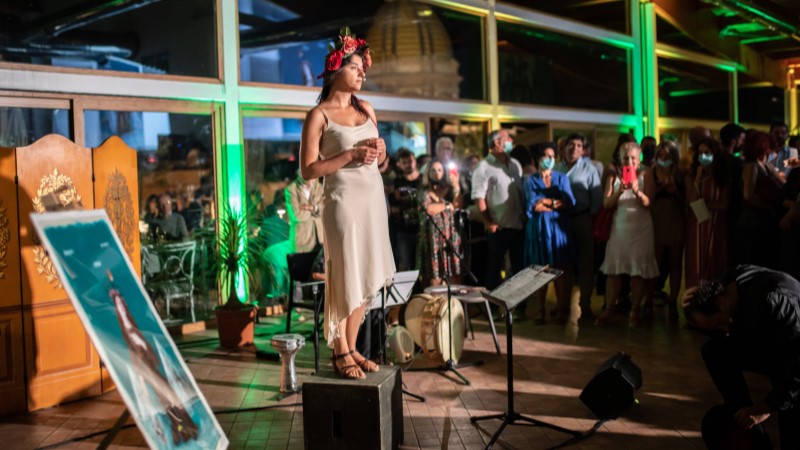

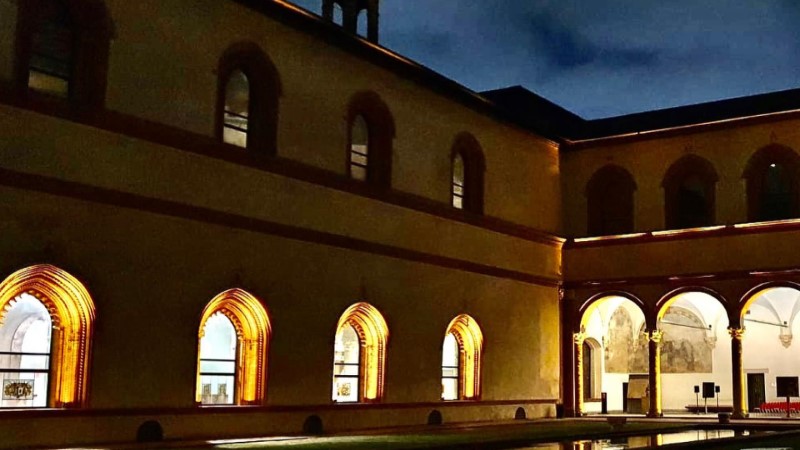

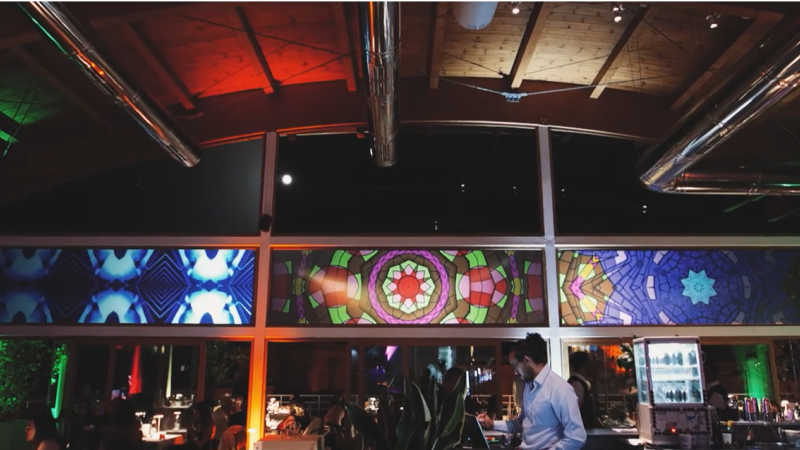

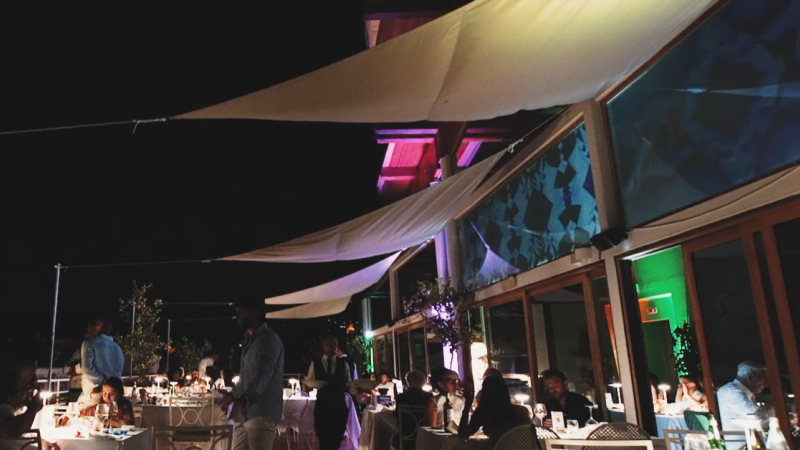

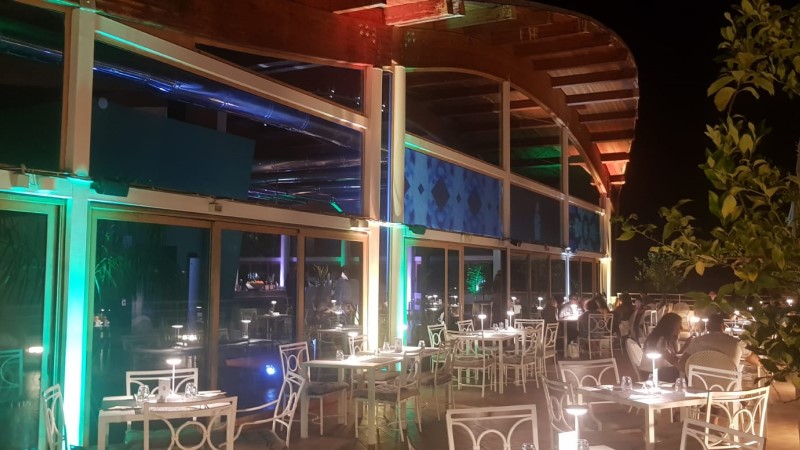

Ideal for creating suggestive atmospheres and effects both for rental situation but also for  fixed installations.

Light: 4*12W 4in1 RGBW
Lumen: 1315

Light: 4*12W 4in1 RGBW
Lumen: 1315

Electronic Dimming: 0-100% linear dimmer

Strobo 0-15 Hz

Curva Dimmer Linear, Square, I-Square, S-Curve Auto Run program

Auto Run effect

Upgrade online

Power management

Change angle quickly

DMX Channels: 4/6/9CH
Control Mode: DMX512, Manual, Master Slave, Stand Alone, Wireless DMX

Power: 75w
Voltage: 24V with charging base and/or charging flight case

Wireless: 2.4GHz, G3, G4
Display: OLED touch digital display
Working Temperature: -20°+45°
Cooling: Natural Convection Cooling
Optional: Diffuser Beam Angle, Charger  Base, Flightcase recharge

Seetronic 3pins waterproof DMX input/output
Power Cable

Seetronic 3pins waterproof DMX input/output
Power Cable
