PANORAMIC

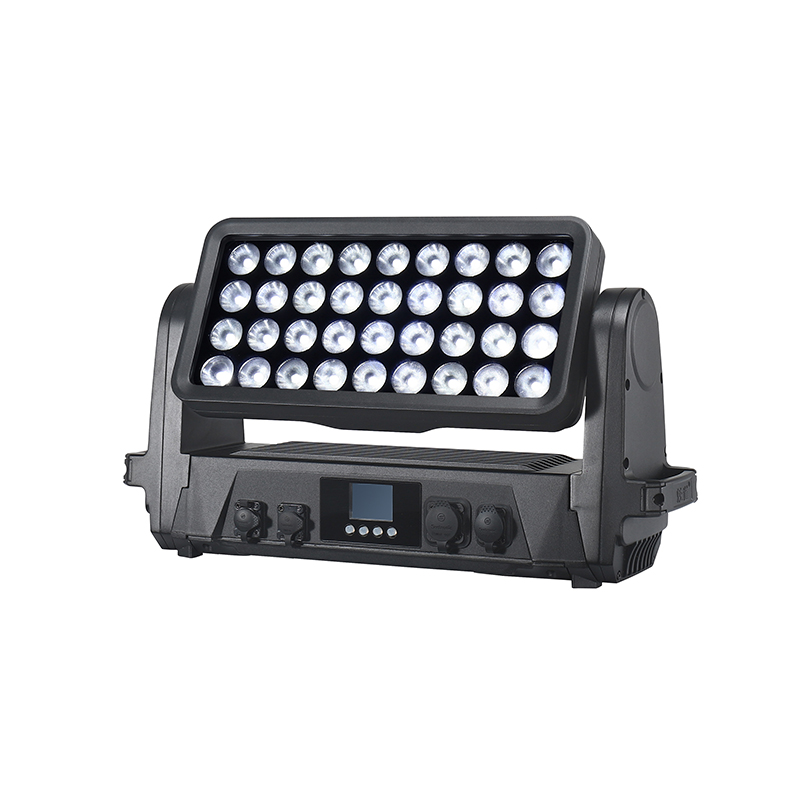

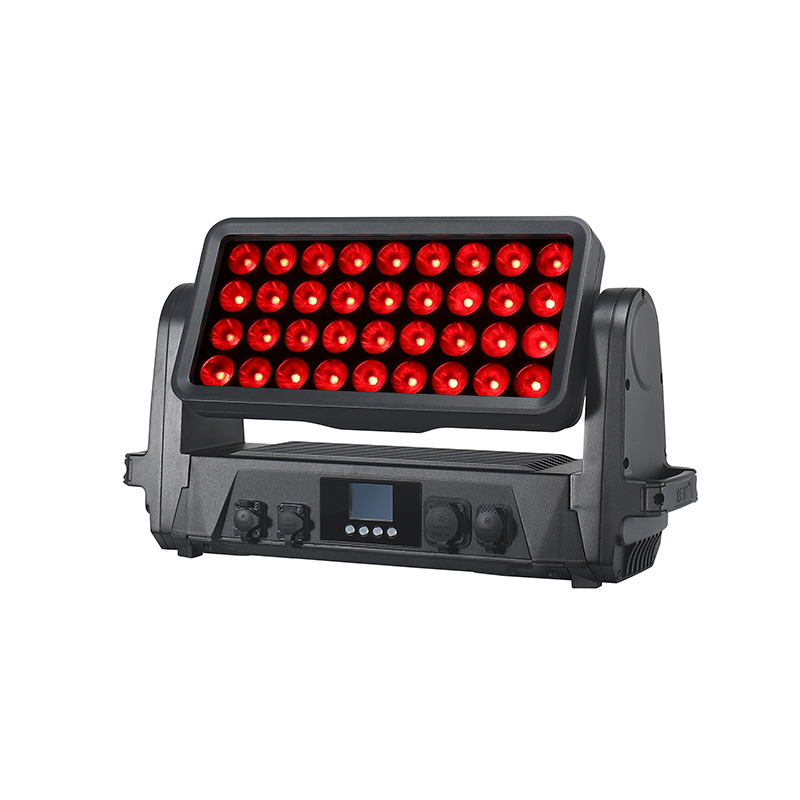

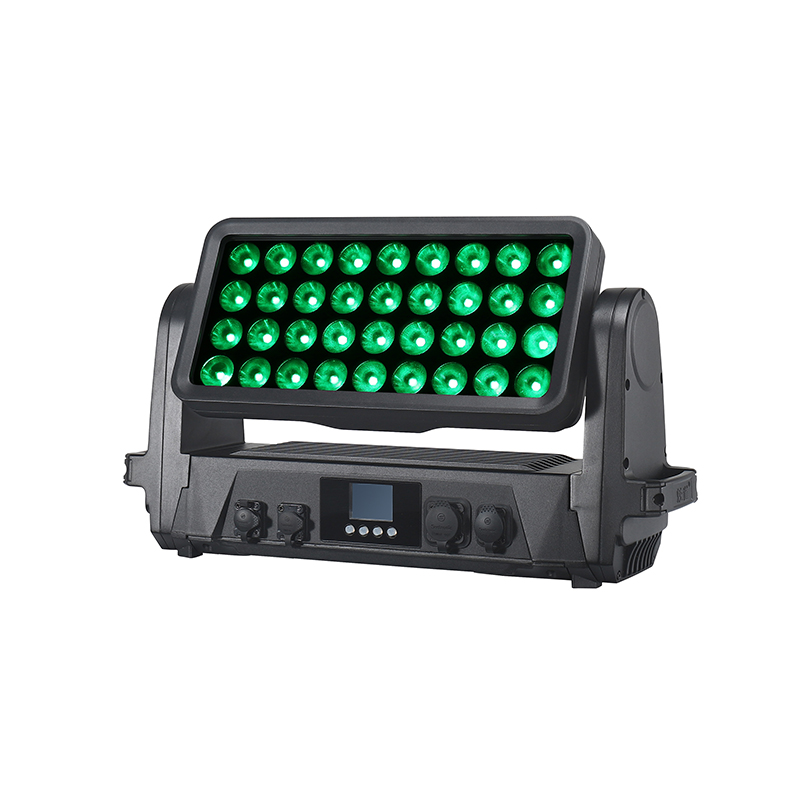

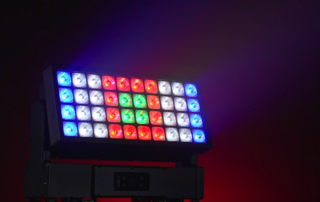

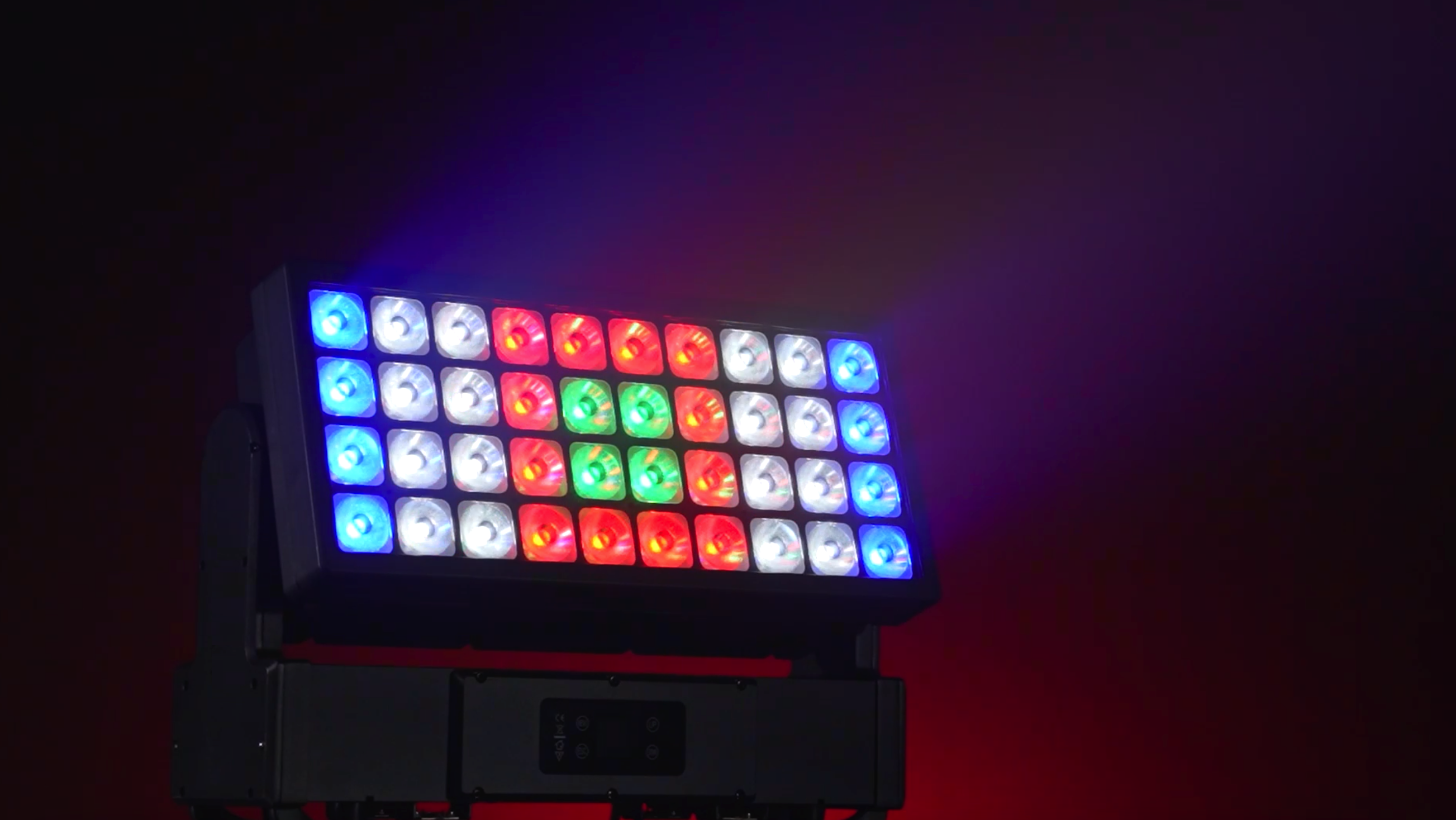

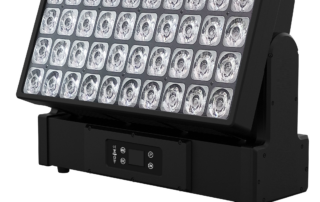

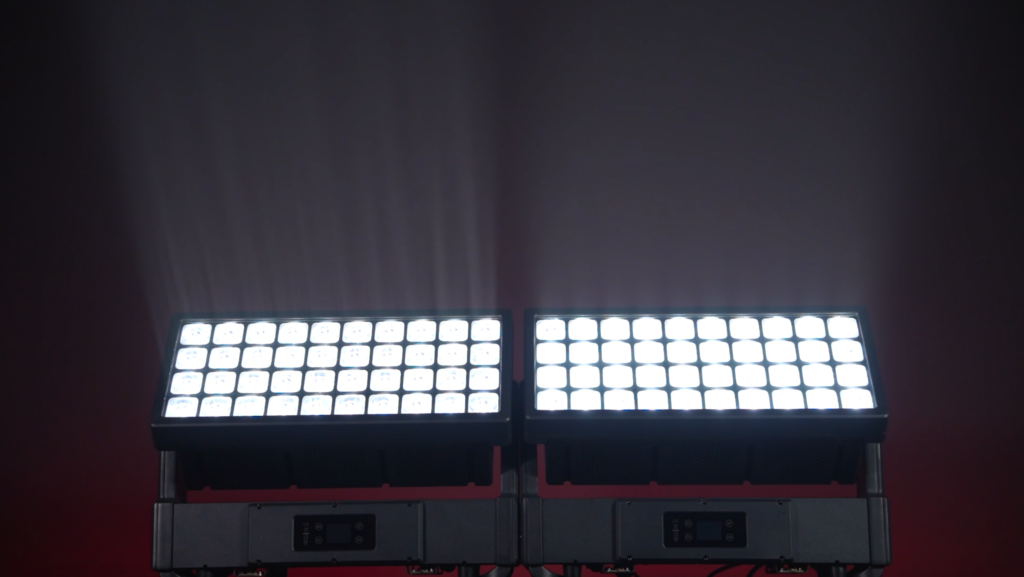

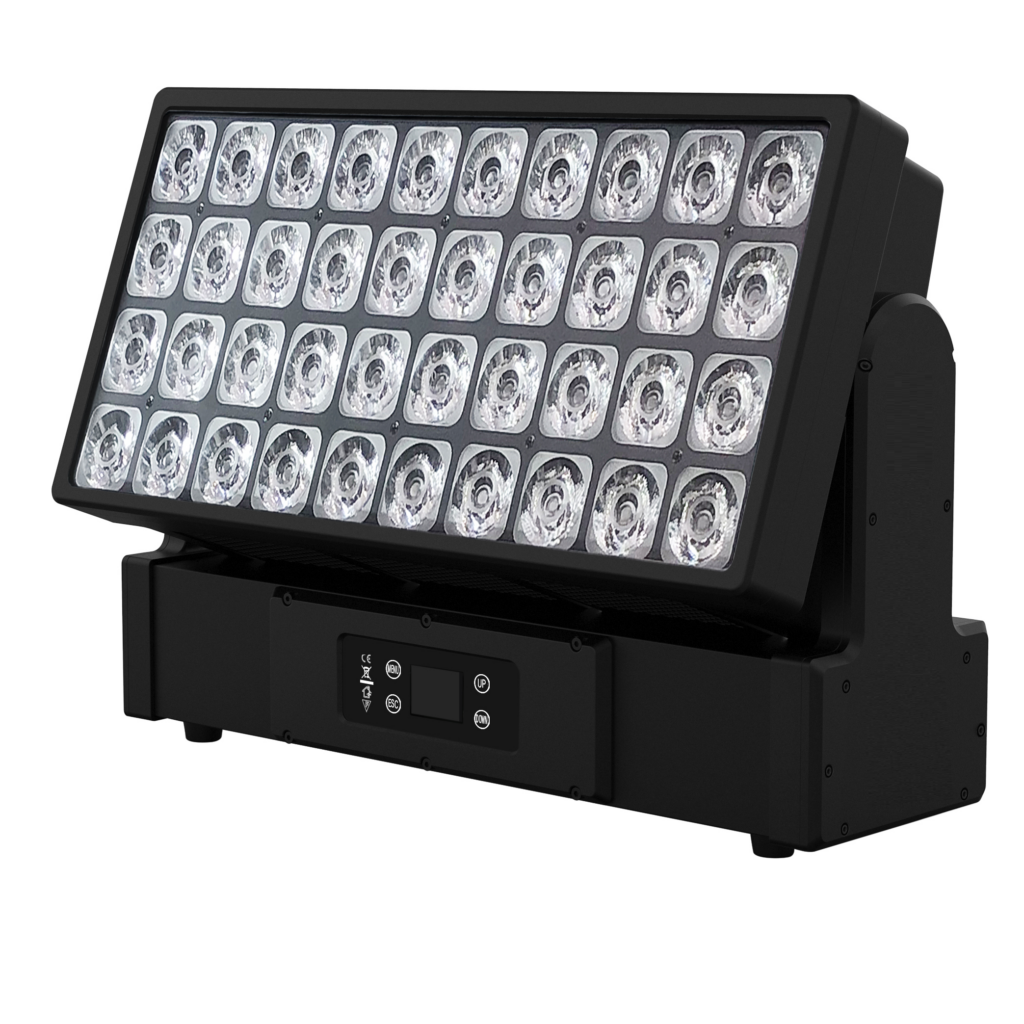

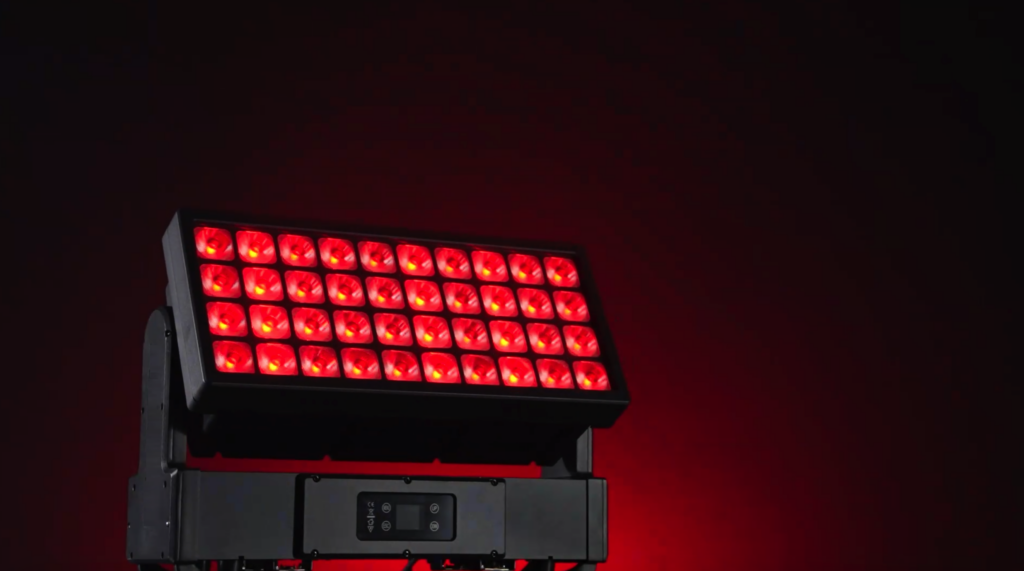

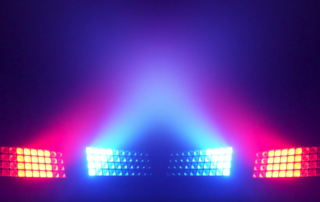

Architectural RGBW Led Outdoor Wall Washer Moving Head

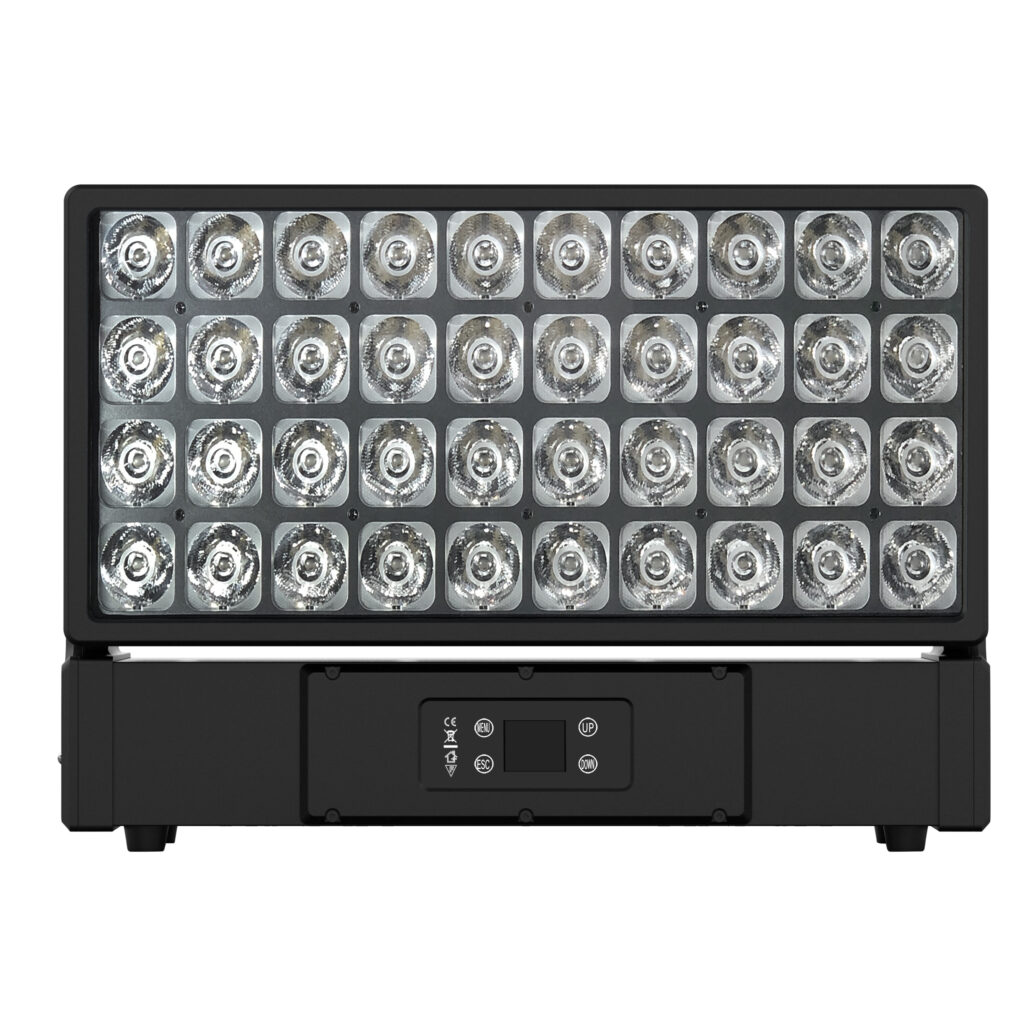

36 x high-power 15W RGBW 4in1 LEDs

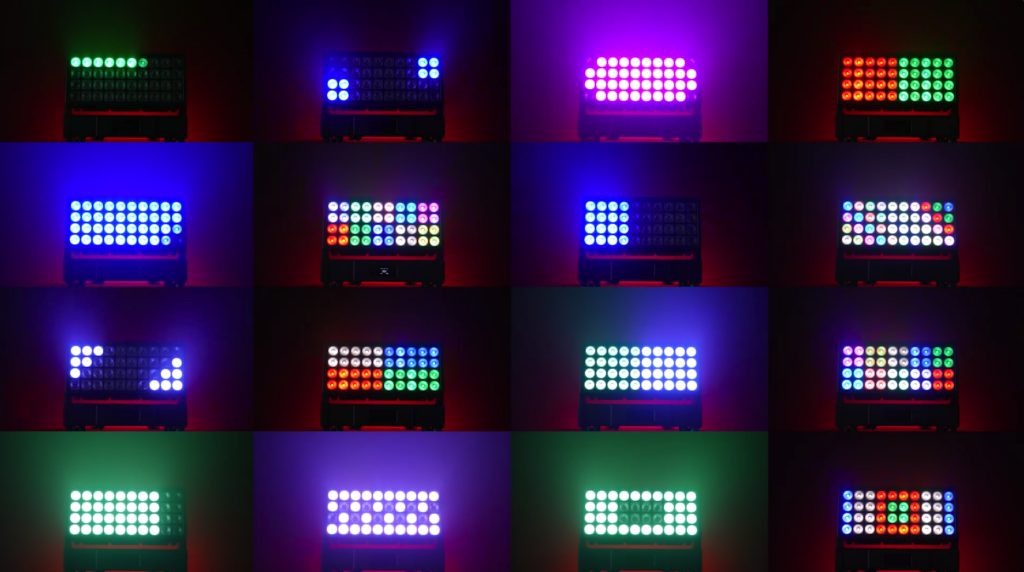

Control in 4 segments, Variable Speed Two-way,
Color Rainbow Effect & Flow Effect,

0-100% linear dimming

Strobe effect

DMX 512signal, 5 Pin, interface RDM

TECHNICAL DATA

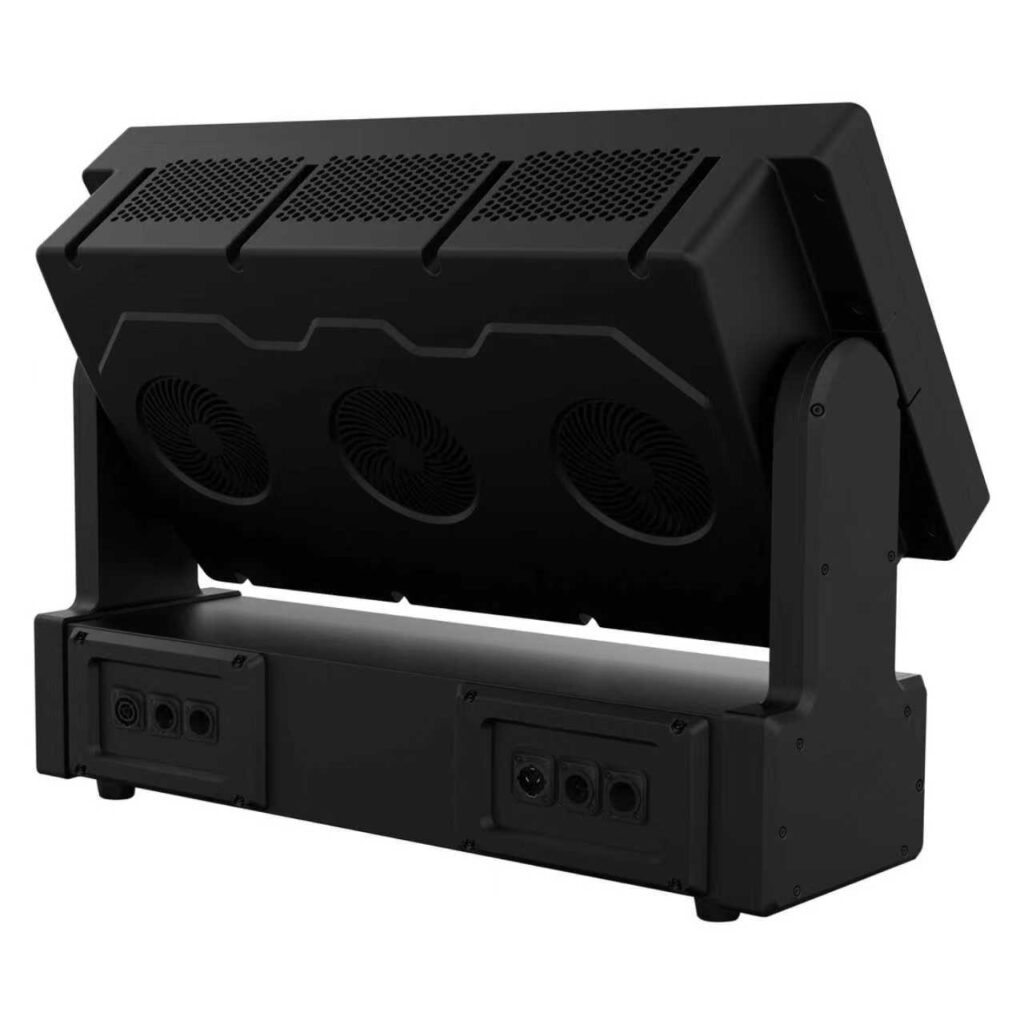

Arkiwash is a Architectural Wall Washer Led Moving Head RGBW Outdoor used in control static and/or moving head in several application.

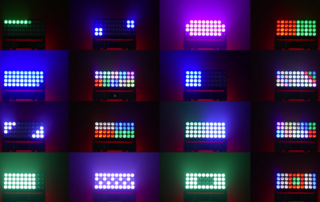

Control in 4 segments, Variable Speed Two-way Rainbow Effect & Flow effect Color, 0-100% smooth dimming, Tilt: 270; XY axis rotation function and reverse,
Electric strobe 0.3-20pcs/sec, Max 20Hz adjustable horizontal and vertical speed, Speed-regulating radiator.

Die-casting Aluminium housing, 25° degree lens, with possibility to have diffuser 60×25°or 25°x60° as optional.

Ideal for art gallery, museum, shoping mall, and entertainment event.

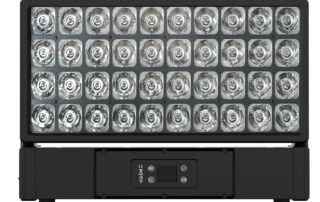

Light source: 36x15W RGBW 4in1 LEDs
Color Temperature: 2000K ~ 8000K

Beam angle 25° lens (60×25° diffuser opt.)

Control in 4 segments, Variable
Speed Two-way Rainbow Effect & Color Flow Effect
0-100% smooth dimming,
Tilt: 270;
XY axis rotation function and reverse,
Electric strobe 0.3-20pcs/sec, Max 20Hz

5 Pin DMX512 interface RDM ,
4 channel modes, Master-slave,
Stand-alone mode, Self-test mode

Input voltage AC100-240V/50-60Hz
Power 550W@220V

Adjustable horizontal and vertical speed
Display fixture using time
Modular structure for easy maintenance

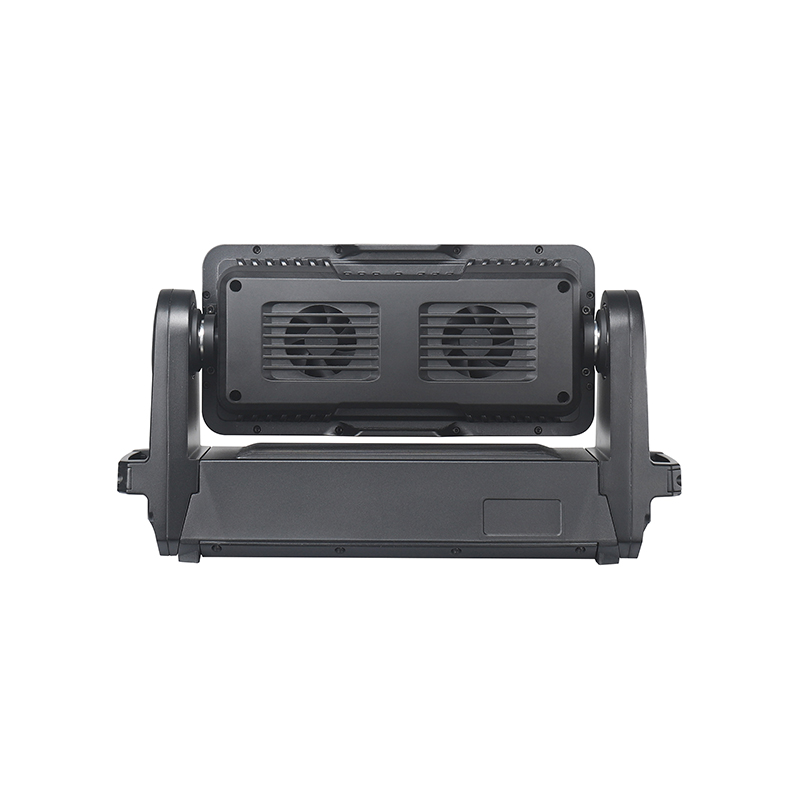

Speed-regulating radiator

5-pin DMX in/out connectors

Housing case: High-strength casting aluminum alloy

Housing color: Black

Protection class IP: IP65

Dimension: 535x300x152mm

Weight: 12 kg
